(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

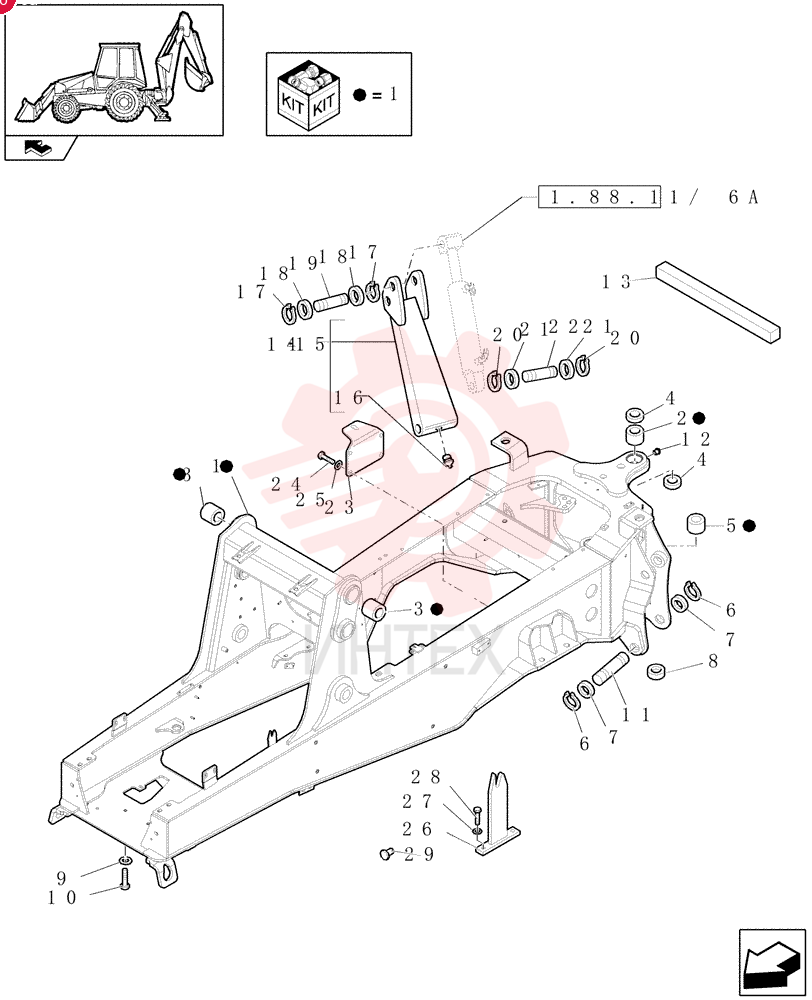

FRAME 87573088

FRAME 87573088

FRAME 87573088

1 87573088

  • 87573088 - FRAME

2 85700728

  • 85700728 - BUSHING
  • 70.24mm ID x 86.01mm OD x 50.5mm L

3 85801110

  • 85801110 - BUSHING
  • 51.15mm ID x 64.98mm OD x 70mm L

4 81875248

  • 81875248 - SEAL
  • 70mm ID x 80.1mm OD x 5mm Thk

5 83910645

  • 83910645 - BUSHING
  • 70.35mm ID x 80.18mm OD x 32mm L

6 83911020

  • 83911020 - SNAP RING
  • 46mm ID
  • Ext

7 81901837

  • 81901837 - WASHER
  • 2.02" ID x 3" OD x 0.12" Thk

8 85802903

  • 85802903 - INSULATOR

9 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

10 15989134

  • 15989134 - BOLT
  • Hex
  • M20 x 1.5 x 100mm
  • Cl 10.9

11 83911000

  • 83911000 - PIN
  • 50mm OD x 348mm L

12 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

13 85802338

  • 85802338 - STRIP-GASKET

14 85803959

  • 85803959 - STABILIZER

15 85803960

  • 85803960 - STABILIZER

16 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

17 83910630

  • 83910630 - RING
  • 36.75
  • 37.10mm ID x 2.72
  • 2.88mm Thk

18 83910629

  • 83910629 - SPACER
  • 40.8mm ID x 61.5mm OD x 3.5mm Thk

19 83999466

  • 83999466 - PIN
  • 40mm OD x 164mm L

20 83911019

  • 83911019 - SNAP RING
  • M45 x 2.88mm Thk
  • Int

21 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L

22 85801262

  • 85801262 - PIN
  • 45mm OD x 215mm L

23 85804171

  • 85804171 - SUPPORT

24 15540531

  • 15540531 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

25 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

26 87302151

  • 87302151 - SUPPORT

27 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

28 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

29 85808422

  • 85808422 - PLUG
  • Black
