(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

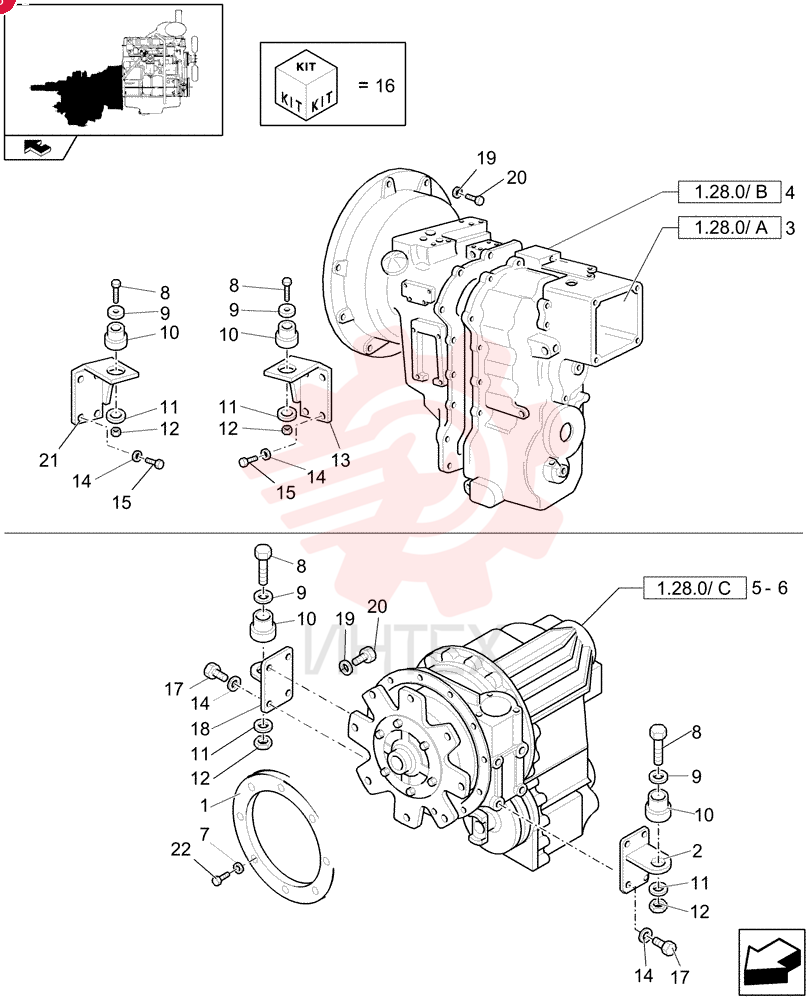

RING 87407758

RING 87407758

RING 87407758

1 87407758

  • 87407758 - RING

2 85804276

  • 85804276 - SUPPORT

3 86990712

  • 86990712 - TRANSMISSION

4 86990712R

  • 86990712R - REMAN-TRANSMISSION

5 86990712C

  • 86990712C - CORE-TRANSMISSION

6 86990713

  • 86990713 - TRANSMISSION

7 86990713R

  • 86990713R - REMAN-TRANSMISSION

8 86990713C

  • 86990713C - CORE-TRANSMISSION

9 87571324

  • 87571324 - TRANSMISSION

10 87571330

  • 87571330 - TRANSMISSION

11 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

12 87410647

  • 87410647 - BOLT
  • Hex
  • M12 x 1.25 x 90mm
  • Cl 8.8

13 85801585

  • 85801585 - SEALING WASHER
  • 13mm ID x 65mm OD x 5mm Thk

14 87416967

  • 87416967 - SUPPORT

15 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

16 16105011

  • 16105011 - NUT
  • Hex
  • M12 x 1.25
  • Cl 8

17 87405629

  • 87405629 - SUPPORT

18 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

19 11112634

  • 11112634 - SCREW

20 85806019

  • 85806019 - O-RING KIT

21 11112434

  • 11112434 - BOLT
  • Hex
  • M12 x 30mm
  • Cl 10.9
  • Full Thd

22 85804275

  • 85804275 - SUPPORT

23 47049372

  • 47049372 - WASHER

24 11106434

  • 11106434 - BOLT
  • Hex
  • M10 x 30mm
  • Cl 10.9
  • Full Thd

25 87405628

  • 87405628 - SUPPORT

26 87019767

  • 87019767 - 12 PT SCREW
  • M10 x 1.25 x 30mm
  • Cl 10.9
