New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

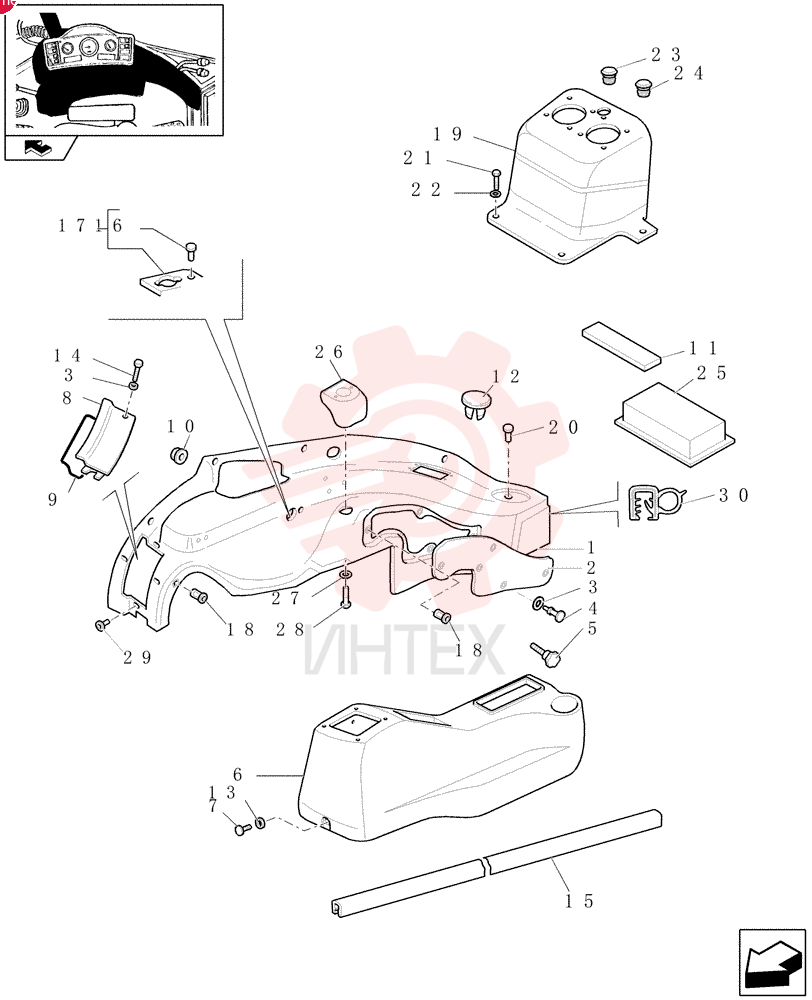

SOFT TRIM 87543716

SOFT TRIM 87543716

SOFT TRIM 87543716

1 87543716

  • 87543716 - SOFT TRIM

2 85801649

  • 85801649 - SOFT TRIM

3 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

4 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

5 85805323

  • 85805323 - KNOB

6 85805803

  • 85805803 - UTILITY HOLDER

7 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

8 85825191

  • 85825191 - COVER

9 85806023

  • 85806023 - SEALING STRIP

10 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

11 85805308

  • 85805308 - SEAL
  • 20mm W x 200mm L x 5mm Thk

12 79111815

  • 79111815 - PLUG
  • 14-15mm OD

13 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

14 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

15 85812081

  • 85812081 - RUBBER STRIP

16 10427201

  • 10427201 - RIVET
  • 4mm OD x 5mm L

17 85827548

  • 85827548 - PLATE

18 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

19 85827817

  • 85827817 - BLISTER

20 85808460

  • 85808460 - PLUG

21 14441521

  • 14441521 - SCREW
  • Flat Csk Hd
  • M6 x 25mm
  • Cl 8.8

22 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

23 79111978

  • 79111978 - PLUG
  • 23mm OD

24 82001909

  • 82001909 - PLUG
  • 33mm OD

25 4999021

  • 4999021 - GASKET

26 87540633

  • 87540633 - DASHBOARD

27 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk

28 13274217

  • 13274217 - SCREW
  • Pozidriv Pan Hd
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

29 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L

30 85819016

  • 85819016 - RUBBER STRIP
