New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

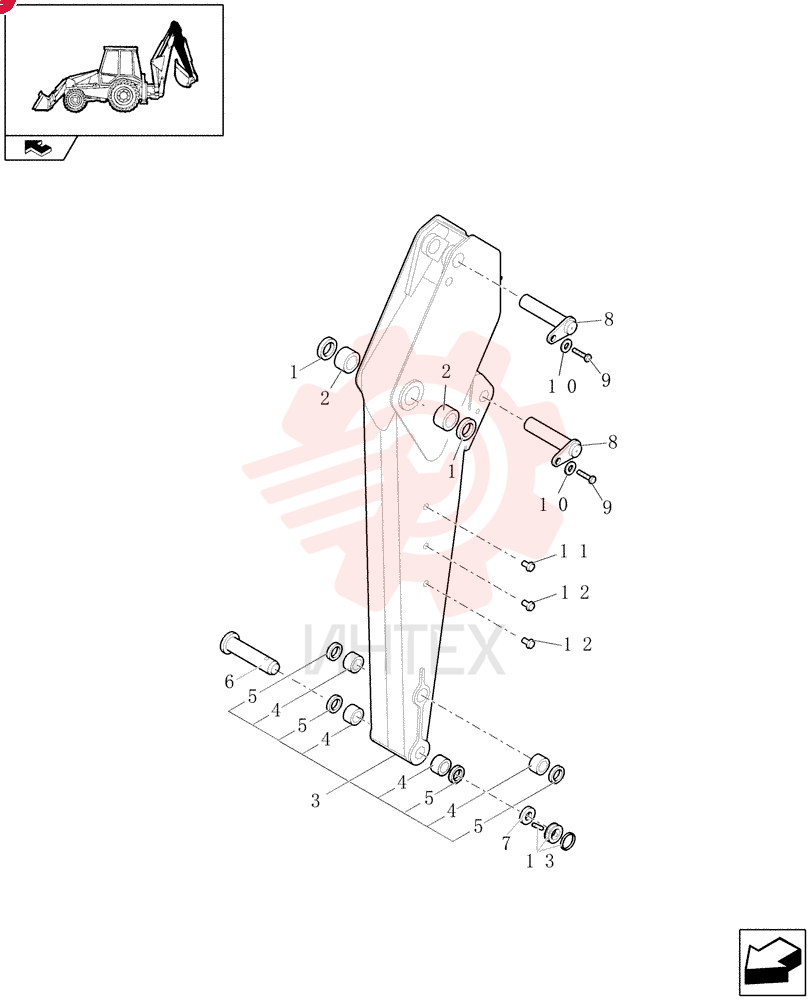

SEAL,55mm ID x 65.1mm OD x 3.18mm Thk

SEAL,55mm ID x 65.1mm OD x 3.18mm Thk

SEAL,55mm ID x 65.1mm OD x 3.18mm Thk

1 83931281

  • 83931281 - SEAL
  • 55mm ID x 65.1mm OD x 3.18mm Thk

2 83910546

  • 83910546 - BUSHING
  • 55.18mm ID x 71.01mm OD x 50.5mm L

3 85817039

  • 85817039 - DIPPER

4 83910548

  • 83910548 - BUSHING
  • 45.18mm ID x 61.01mm OD x 50.5mm L

5 83931289

  • 83931289 - SEAL
  • 43.38mm ID x 55.1mm OD x 3.18mm Thk

6 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

7 85818916

  • 85818916 - SHIM
  • 46mm ID x 70mm OD x 1mm Thk

8 85803002

  • 85803002 - PIN
  • 45mm OD x 199mm L

9 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

10 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

11 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

12 85804447

  • 85804447 - PLUG
  • 8mm OD

13 85802975

  • 85802975 - LINCH PIN
  • 10mm OD x 64.5mm L
