New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

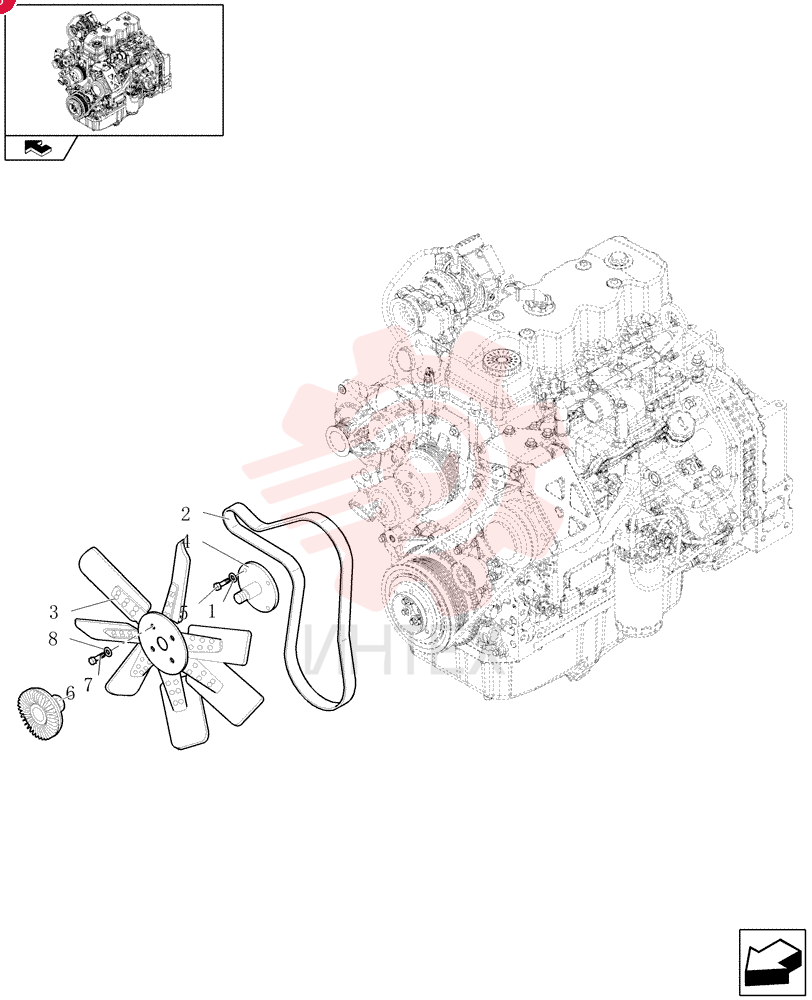

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1 47048972

  • 47048972 - WASHER
  • 10.8mm ID x 21.5mm OD x 2.5mm Thk

2 87415774

  • 87415774 - V-BELT
  • 28.28 mm W x 1406.00 mm L

3 47049943

  • 47049943 - FAN
  • 9 Blades
  • 500.1mm OD

4 47049809

  • 47049809 - ADAPTER

5 47049186

  • 47049186 - BOLT
  • M10 x 30mm

6 87340008

  • 87340008 - DRIVE

7 47042342

  • 47042342 - SCREW

8 47048992

  • 47048992 - LOCK WASHER
  • 8mm ID
