New Holland Construction
/
(B110 TIER 3) - LOADER BACKHOE (2/07-)
/

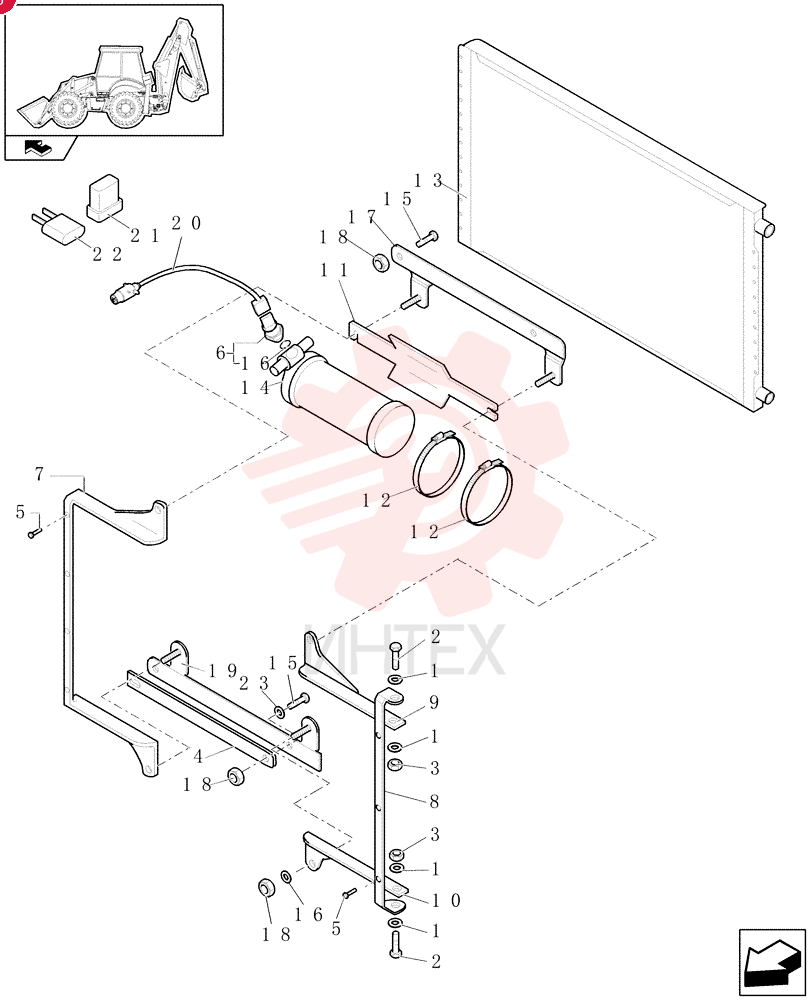

WASHER,M8

WASHER,M8

WASHER,M8

1 14496534

  • 14496534 - WASHER
  • M8

2 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

3 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

4 87315252

  • 87315252 - BRACKET

5 85819184

  • 85819184 - SCREW

6 85804065

  • 85804065 - PRESSURE SWITCH

7 87315214

  • 87315214 - BRACKET

8 87315219

  • 87315219 - BRACKET

9 87315221

  • 87315221 - BRACKET

10 87315225

  • 87315225 - BRACKET

11 87315236

  • 87315236 - BRACKET

12 87315239

  • 87315239 - HOSE CLAMP
  • 65 - 85mm

13 87314566

  • 87314566 - CONDENSER

14 87315241

  • 87315241 - FILTER

15 10903421

  • 10903421 - BOLT
  • Hex
  • M6 x 45mm
  • Cl 8.8

16 85819185

  • 85819185 - SEAL

17 87319438

  • 87319438 - SUPPORT

18 14040711

  • 14040711 - NUT

19 87319441

  • 87319441 - SUPPORT

20 87569316

  • 87569316 - EXTENSION

21 85821537

  • 85821537 - RELAY
  • 12V
  • 40A

22 9811773

  • 9811773 - FUSE
  • 10A
  • Micro
  • Red

23 12643701

  • 12643701 - WASHER
  • 6.15mm ID x 18mm OD x 1.5mm Thk
