(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

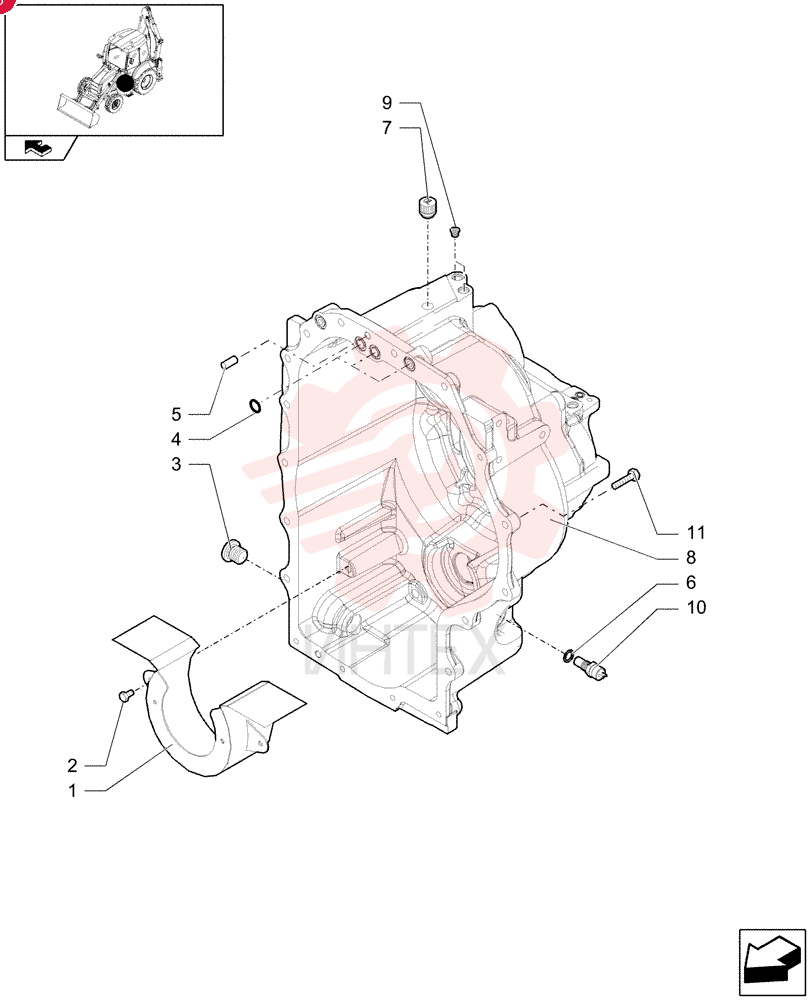

SHIELD 84299411

SHIELD 84299411

SHIELD 84299411

1 84299411

  • 84299411 - SHIELD

2 120104

  • 120104 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

3 85806012

  • 85806012 - PLUG
  • M30 x 2

4 181141A1

  • 181141A1 - O-RING
  • 17.12mm ID x 2.62mm Width

5 K260177

  • K260177 - PIN

6 3051337R1

  • 3051337R1 - SEALING RING
  • M18 x 24mm OD x 1.5mm Thk

7 1530028C1

  • 1530028C1 - BREATHER

8 87705453

  • 87705453 - TRANSMISSION HOUSING

9 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

10 87705451

  • 87705451 - SENSOR

11 9706704

  • 9706704 - BOLT
  • Hex
  • M10 x 1.5 x 41.58mm
  • Cl 8.8
