(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

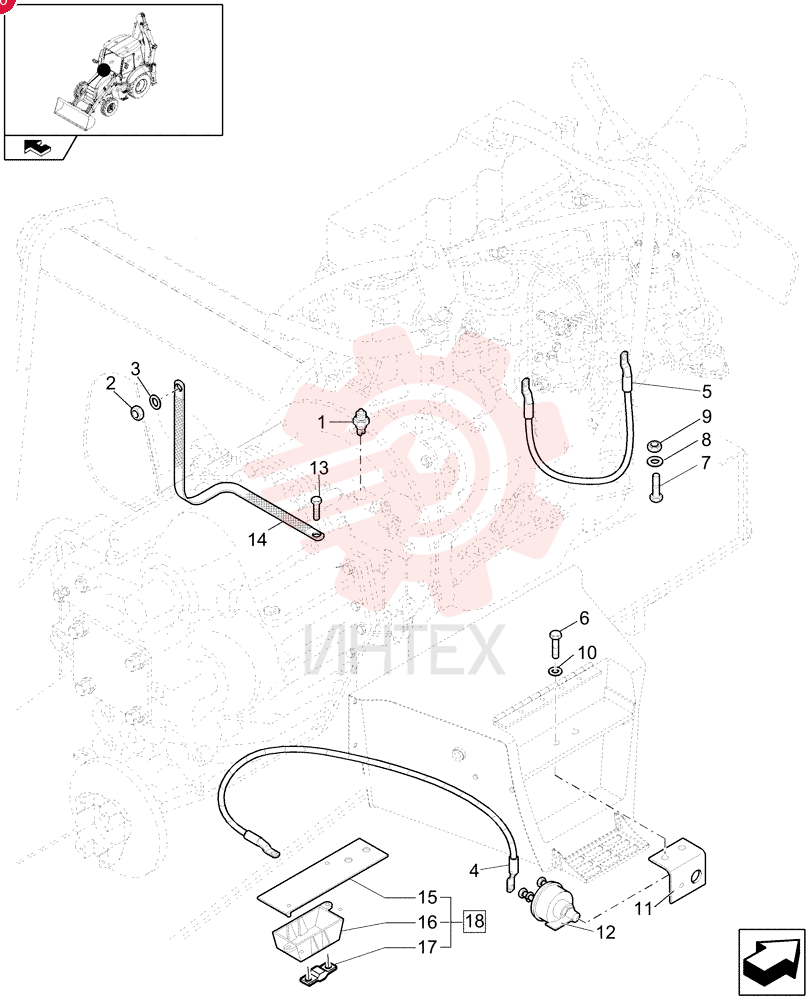

TEMPERATURE SENDER,1/2" - 14 NPTF 84300765 (1)

TEMPERATURE SENDER,1/2" - 14 NPTF 84300765 (1)

TEMPERATURE SENDER,1/2" - 14 NPTF 84300765 (1)

1 84300765

  • 84300765 - TEMPERATURE SENDER
  • 1/2" - 14 NPTF

2 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

3 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

4 87427925

  • 87427925 - CABLE
  • 1760mm L

5 87636291

  • 87636291 - CABLE
  • 450mm L

6 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

7 47049010

  • 47049010 - BOLT
  • Hvy Hex
  • M10 x 20mm
  • Cl 8.8

8 47048993

  • 47048993 - LOCK WASHER
  • 10mm ID

9 47049031

  • 47049031 - NUT
  • M10 x 1.5
  • Cl 10

10 11197879

  • 11197879 - BELLEVILLE WASHER
  • 8.4mm ID x 16mm OD x 2.2mm Thk

11 87613641

  • 87613641 - SUPPORT

12 87409316

  • 87409316 - SWITCH

13 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

14 87407206

  • 87407206 - GROUND STRAP

15 84281612

  • 84281612 - SUPPORT

16 71451490

  • 71451490 - HOUSING

17 87616212

  • 87616212 - FUSE
  • 80A
  • Megaval

18 84286444

  • 84286444 - HARNESS
