(B110B) - BACKHOE LOADER TIER 3 (2008)
/

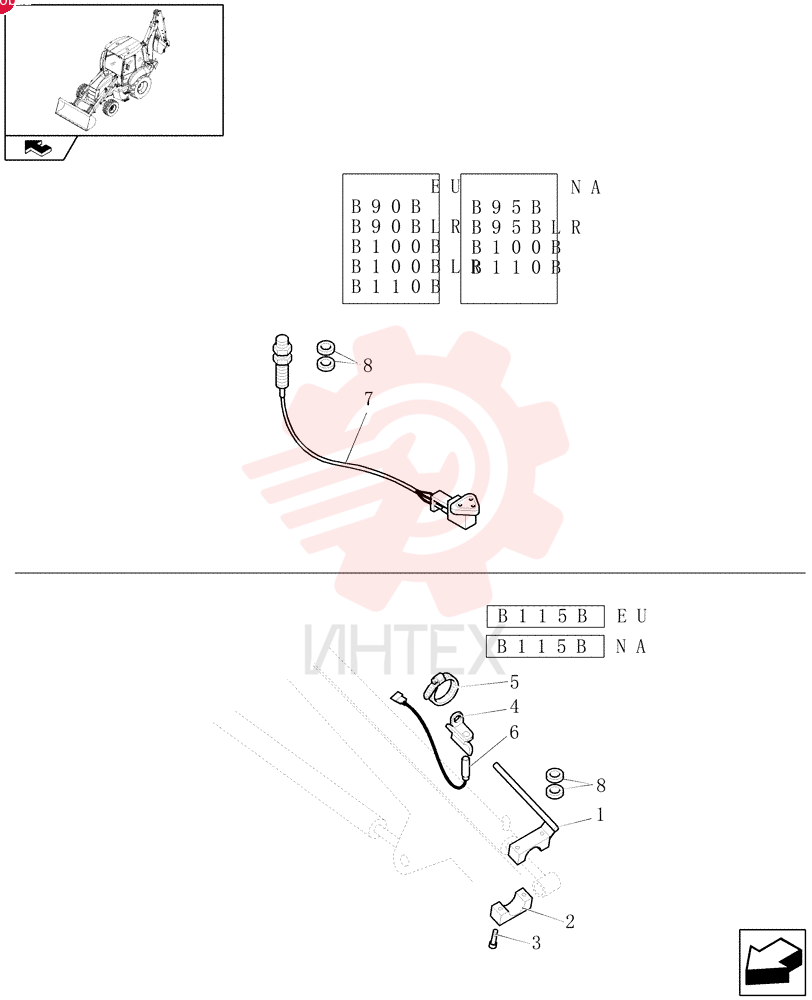

ROD 85805108

ROD 85805108

ROD 85805108

1 85805108

  • 85805108 - ROD

2 85805111

  • 85805111 - CLAMP
  • 50mm ID

3 14305621

  • 14305621 - HEX SOC SCREW
  • M6 x 35mm
  • Cl 8.8

4 85805113

  • 85805113 - SUPPORT

5 85803010

  • 85803010 - HOSE CLAMP
  • 80mm - 100mm

6 85805619

  • 85805619 - SENSOR

7 85802950

  • 85802950 - SENSOR

8 14497001

  • 14497001 - WASHER
  • 19mm ID x 34mm OD x 3mm Thk
