(B110B) - BACKHOE LOADER TIER 3 (2008)
/

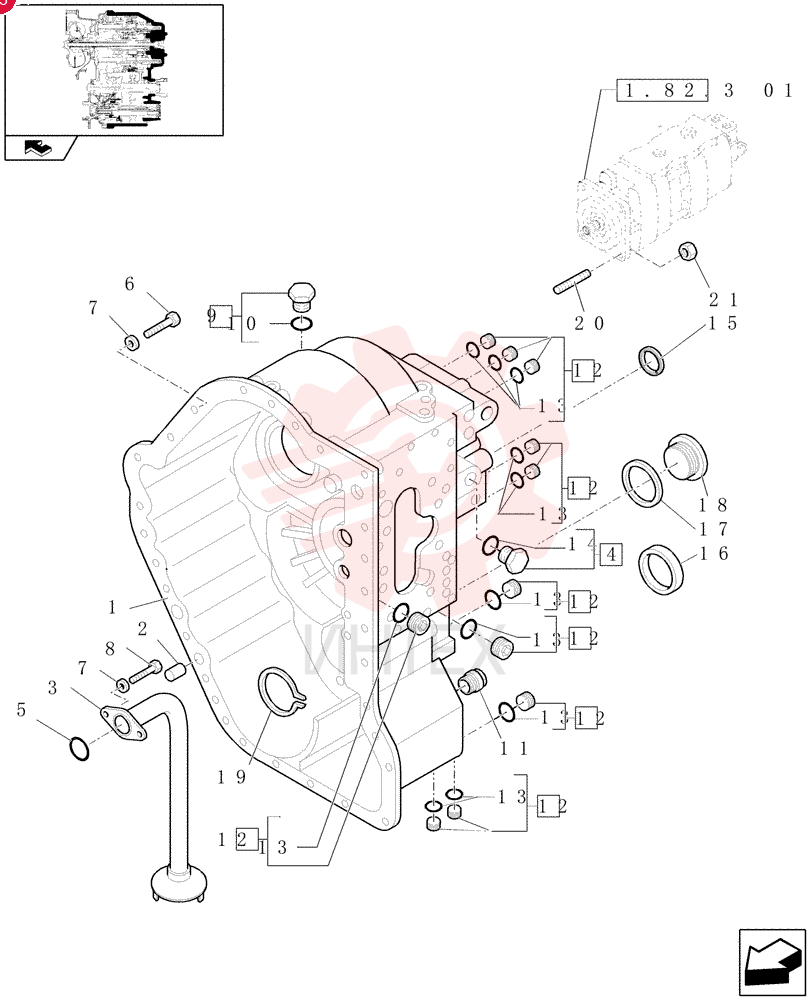

TRANSMISSION HOUSING 85812225

TRANSMISSION HOUSING 85812225

TRANSMISSION HOUSING 85812225

1 85812225

  • 85812225 - TRANSMISSION HOUSING

2 9969017

  • 9969017 - DOWEL

3 85808328

  • 85808328 - TUBE

4 85808330

  • 85808330 - PLUG

5 85808327

  • 85808327 - O-RING
  • 3.53mm Thk x 31.34mm ID
  • Cl 7

6 9969424

  • 9969424 - SCREW

7 9968996

  • 9968996 - LOCK WASHER

8 9969000

  • 9969000 - SCREW

9 9970283

  • 9970283 - PLUG

10 85808323

  • 85808323 - O-RING
  • 0.103" Thk x 0.75" ID
  • -116
  • Cl 5
  • 75 Duro

11 87603872

  • 87603872 - PLUG

12 9970284

  • 9970284 - MAGNETIC PLUG

13 9968989

  • 9968989 - O-RING

14 9969429

  • 9969429 - SEALING RING

15 291527A1

  • 291527A1 - SEAL

16 9970285

  • 9970285 - PLUG

17 9970004

  • 9970004 - SEAL

18 85808331

  • 85808331 - PLUG

19 87603894

  • 87603894 - SNAP RING

20 85803991

  • 85803991 - STUD

21 85802684

  • 85802684 - NUT
