(B110B) - BACKHOE LOADER TIER 3 (2008)
/

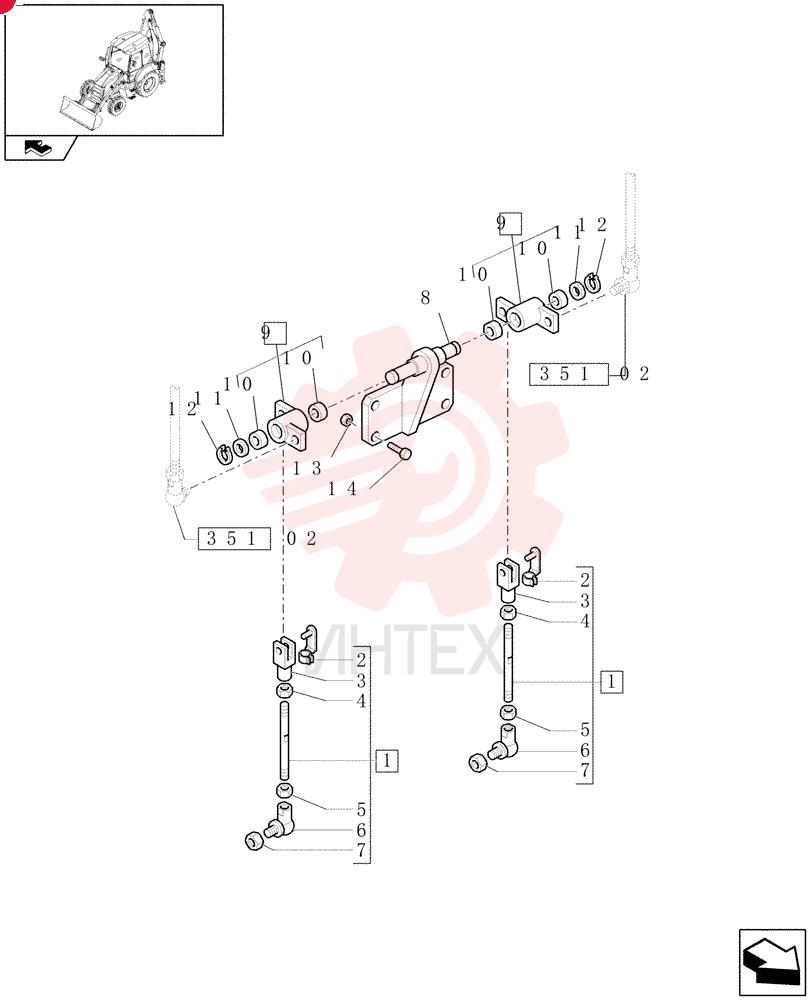

TIE-ROD 85806165

TIE-ROD 85806165

TIE-ROD 85806165

1 85806165

  • 85806165 - TIE-ROD

2 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

3 11991971

  • 11991971 - CLEVIS
  • M8

4 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

5 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

6 85804375

  • 85804375 - BALL JOINT
  • M8

7 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

8 85804899

  • 85804899 - SUPPORT

9 85804895

  • 85804895 - LEVER

10 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

11 13507714

  • 13507714 - WASHER
  • 16.4mm ID x 27mm OD x 2mm Thk

12 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

13 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

14 16043821

  • 16043821 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
