(B110B) - BACKHOE LOADER TIER 3 (2008)
/

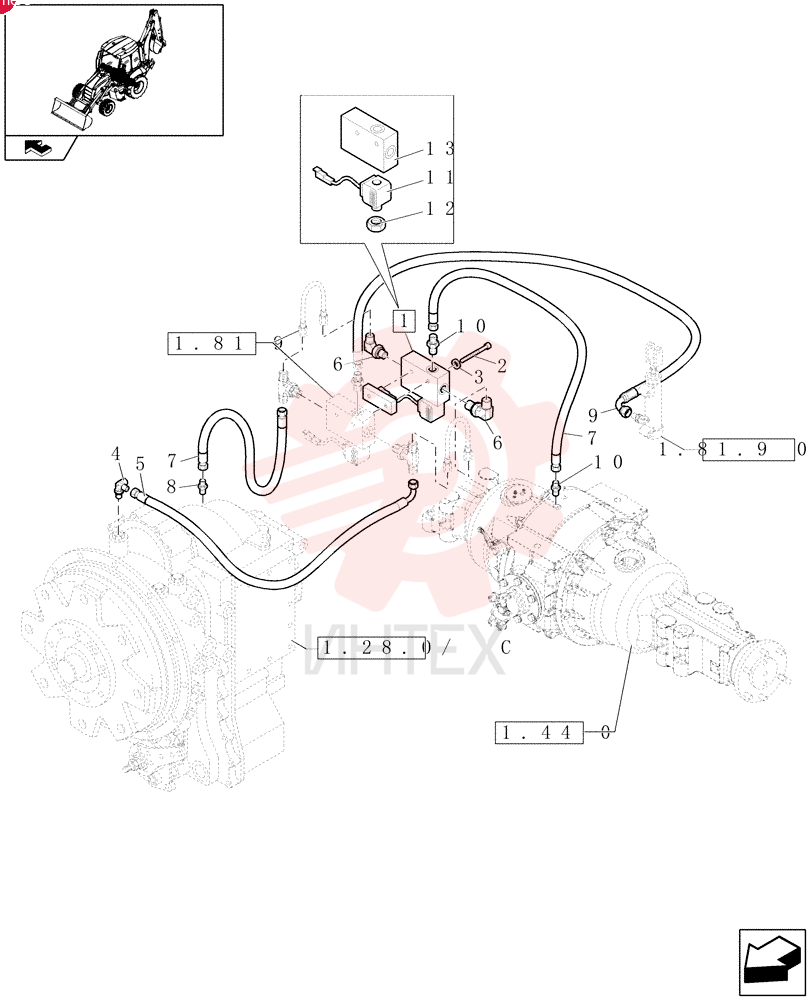

SOLENOID VALVE,12V 85817265 (1)

SOLENOID VALVE,12V 85817265 (1)

SOLENOID VALVE,12V 85817265 (1)

1 85817265

  • 85817265 - SOLENOID VALVE
  • 12V

2 10903221

  • 10903221 - SCREW
  • Hex
  • M6 x 40mm
  • Cl 8.8

3 11197779

  • 11197779 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

4 87566829

  • 87566829 - FITTING

5 85819069

  • 85819069 - FLEXIBLE HOSE

6 85802195

  • 85802195 - FLEXIBLE HOSE
  • 2000mm lg

7 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

8 85819068

  • 85819068 - FLEXIBLE HOSE
  • 6.40 mm ID x 2100 mm L

9 85804833

  • 85804833 - FLEXIBLE HOSE

10 87403805

  • 87403805 - HYD CONNECTOR

11 85819071

  • 85819071 - FLEXIBLE HOSE

12 85803308

  • 85803308 - FLEXIBLE HOSE
  • 1000mm lg

13 85803312

  • 85803312 - HYD CONNECTOR
  • 7/16"-20 JIC x 9/16"-18 ORB

14 87357715

  • 87357715 - SOLENOID
  • 12V
  • 20W

15 9970384

  • 9970384 - RING NUT

16 85810977

  • 85810977 - CARTRIDGE
