(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

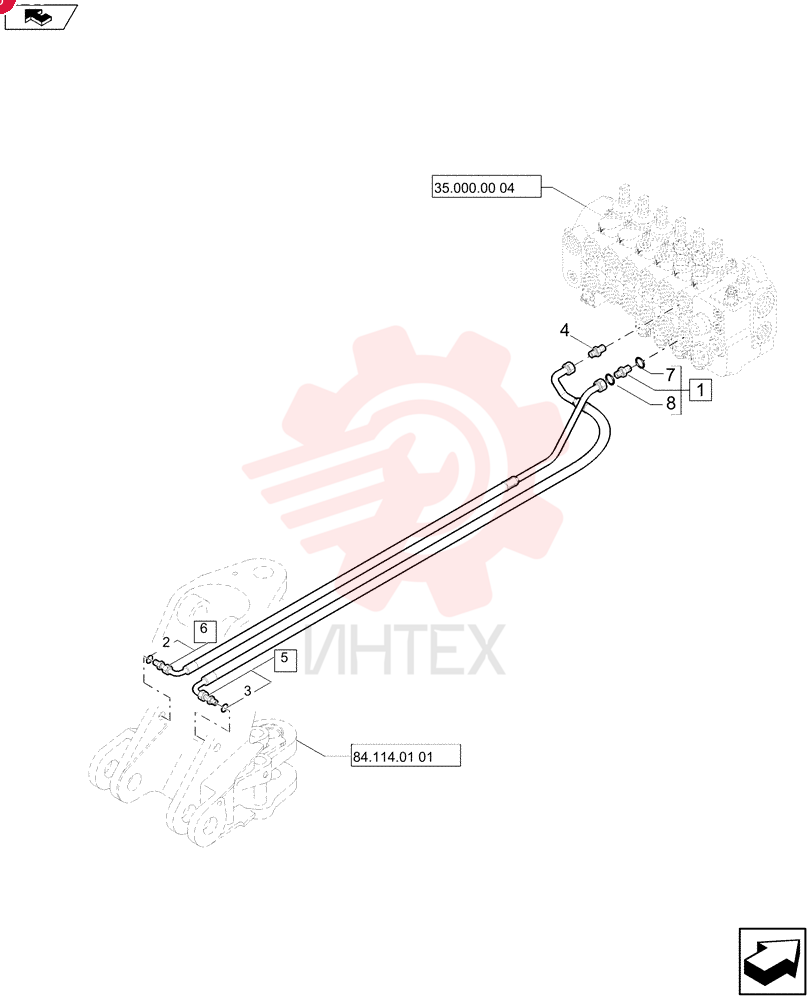

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB 9840535 (2)

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB 9840535 (2)

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB 9840535 (2)

1 9840535

  • 9840535 - HYD CONNECTOR
  • 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

3 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

4 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

5 87621907

  • 87621907 - FLEXIBLE HOSE
  • 15.88mm ID x 590mm L

6 87619484

  • 87619484 - FLEXIBLE HOSE
  • 12.7mm ID x 591mm L

7 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

8 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro
