New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

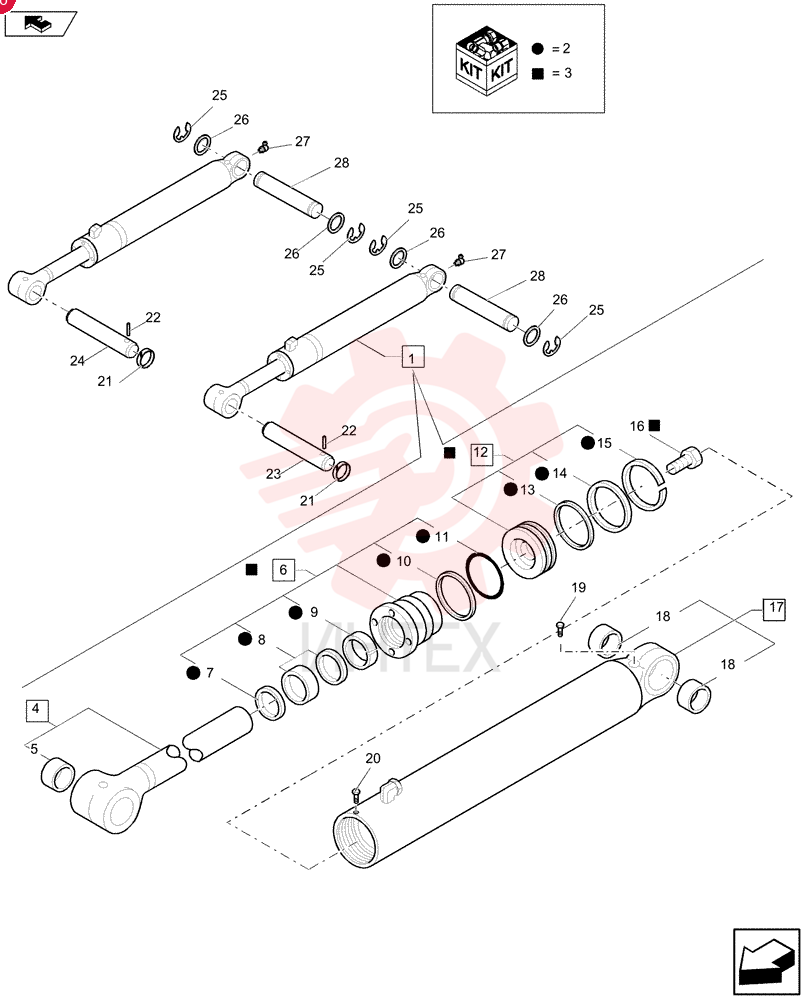

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke

1 87315525

  • 87315525 - HYDRAULIC CYLINDER
  • Double Acting
  • 50mm Rod
  • 90mm Bore
  • 726.7mm Stroke

2 87428628

  • 87428628 - SEAL KIT
  • 50mm Rod x 90mm Bore

3 87424196

  • 87424196 - REPAIR KIT

4 85800103

  • 85800103 - ROD
  • 50mm Rod
  • 951mm Stroke

5 81902174

  • 81902174 - BUSHING
  • 38.25mm ID x 43.03mm OD x 31.75mm L

6 87415116

  • 87415116 - GLAND

7 87414969

  • 87414969 - WIPER SEAL

8 87414970

  • 87414970 - SEAL KIT
  • 50mm Rod

9 87414966

  • 87414966 - NYLON BEARING
  • 50mm ID x 53mm OD x 18mm W

10 87440401

  • 87440401 - BACK-UP RING
  • 84mm ID x 90mm OD x 1.4mm Thk

11 87421144

  • 87421144 - O-RING
  • 0.139" Thk x 3.109" ID
  • -235
  • Cl 5
  • 75 Duro

12 87405859

  • 87405859 - PISTON

13 87414341

  • 87414341 - RING
  • Square
  • 5.28mm Thk x 75.18mm ID

14 87414333

  • 87414333 - SEAL
  • 91.36mm ID x 86.64mm OD x 6.96mm Thk

15 87408634

  • 87408634 - WEAR RING
  • 90mm Bore Dia x 89.5 Rod Dia

16 87428020

  • 87428020 - BOLT
  • Hex
  • M24 x 2 x 50mm
  • Cl 10.9

17 85800105

  • 85800105 - BARREL
  • 90mm Bore Dia

18 81901897

  • 81901897 - BUSHING
  • 50.8mm ID x 57.28mm OD x 28.45mm L

19 353-780

  • 353-780 - PLUG
  • Sltd Hd
  • 7/8"-14
  • w/O-Ring

20 276-2446

  • 276-2446 - SELF-TAP SCREW
  • Hex Hd
  • #8 x 3/8"

21 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

22 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

23 85801050

  • 85801050 - PIN
  • 38.1mm OD x 183mm L

24 85801049

  • 85801049 - PIN
  • 38.1mm OD x 159mm L

25 47049094

  • 47049094 - CIRCLIP
  • M50 x 1.6mm Thk
  • Ext

26 495-81282

  • 495-81282 - WASHER
  • 2 1/16" x 3" x .109"

27 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

28 87402742

  • 87402742 - PIN
  • 50.87mm OD x 243mm L
