(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

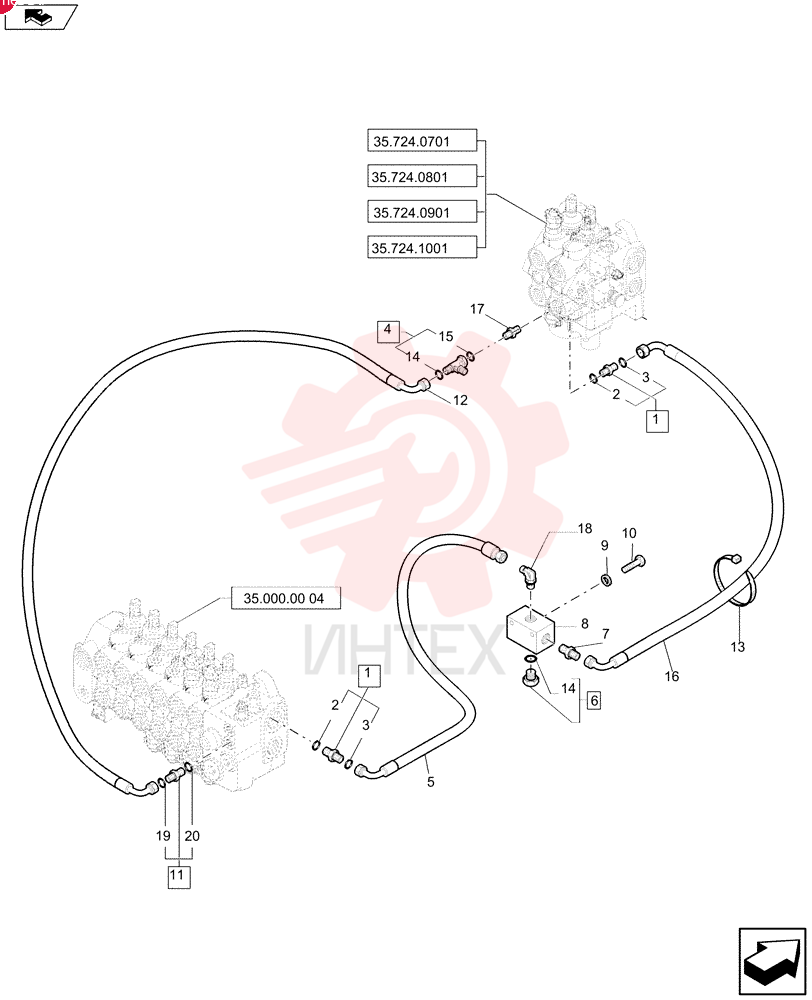

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB 9824055 (1)

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB 9824055 (1)

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB 9824055 (1)

1 9824055

  • 9824055 - HYD CONNECTOR
  • 1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

2 167268

  • 167268 - O-RING
  • 0.116" Thk x 1.171" ID
  • -916
  • Cl 6
  • 90 Duro

3 9824050

  • 9824050 - O-RING
  • 0.07" Thk x 0.926" ID
  • -21
  • Cl 6
  • 90 Duro

4 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB

5 85805167

  • 85805167 - FLEXIBLE HOSE
  • 19.05mm ID x 850mm L

6 86590562

  • 86590562 - PLUG
  • Hex Soc
  • 3/4" - 16 ORB

7 85805168

  • 85805168 - HYD CONNECTOR
  • 1-7/16-12 ORS x 1-5/8-12 UN-2A

8 85805166

  • 85805166 - BLOCK

9 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

10 828-12100

  • 828-12100 - BOLT
  • Hex
  • M12 x 1.75 x 100mm
  • Cl 10.9

11 83963000

  • 83963000 - FITTING
  • 1" - 14 ORFS x 7/8" - 14 ORB

12 85812174

  • 85812174 - FLEXIBLE HOSE
  • 6.35mm ID x 1550mm L

13 14560187

  • 14560187 - COLLAR
  • 199mm L

14 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

15 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

16 85818909

  • 85818909 - FLEXIBLE HOSE
  • 19mm ID x 1150mm L

17 85805502

  • 85805502 - TEE
  • 11/16-16 ORS x 13/16-16 ORS x 3/4-16 SAE

18 86512934

  • 86512934 - 90 ELBOW
  • 90 Degree
  • 7/16"-20
  • 37 Degree x 9/16"-18
  • O-Ring

19 80167269

  • 80167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

20 83901443

  • 83901443 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro
