(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

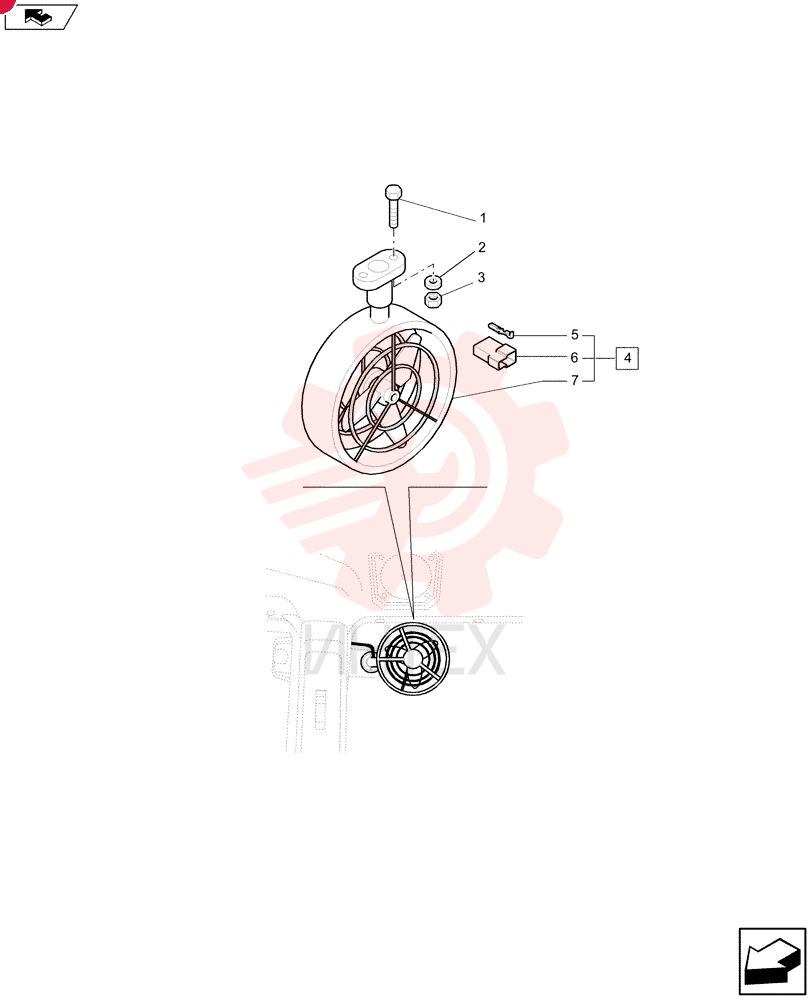

HEX SOC SCREW,M4 x 20mm, Cl 8.8, Full Thd

HEX SOC SCREW,M4 x 20mm, Cl 8.8, Full Thd

HEX SOC SCREW,M4 x 20mm, Cl 8.8, Full Thd

1 14303324

  • 14303324 - HEX SOC SCREW
  • M4 x 20mm
  • Cl 8.8
  • Full Thd

2 12642804

  • 12642804 - WASHER
  • 4.15mm ID x 12mm OD x 1mm Thk

3 86625075

  • 86625075 - NUT
  • M4 x 0.7
  • Cl 8

4 85802205

  • 85802205 - FAN

5 10250644

  • 10250644 - CABLE TERMINAL

6 84038366

  • 84038366 - ELEC CONNECTOR
  • Male

7 85804323

  • 85804323 - FAN
