(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

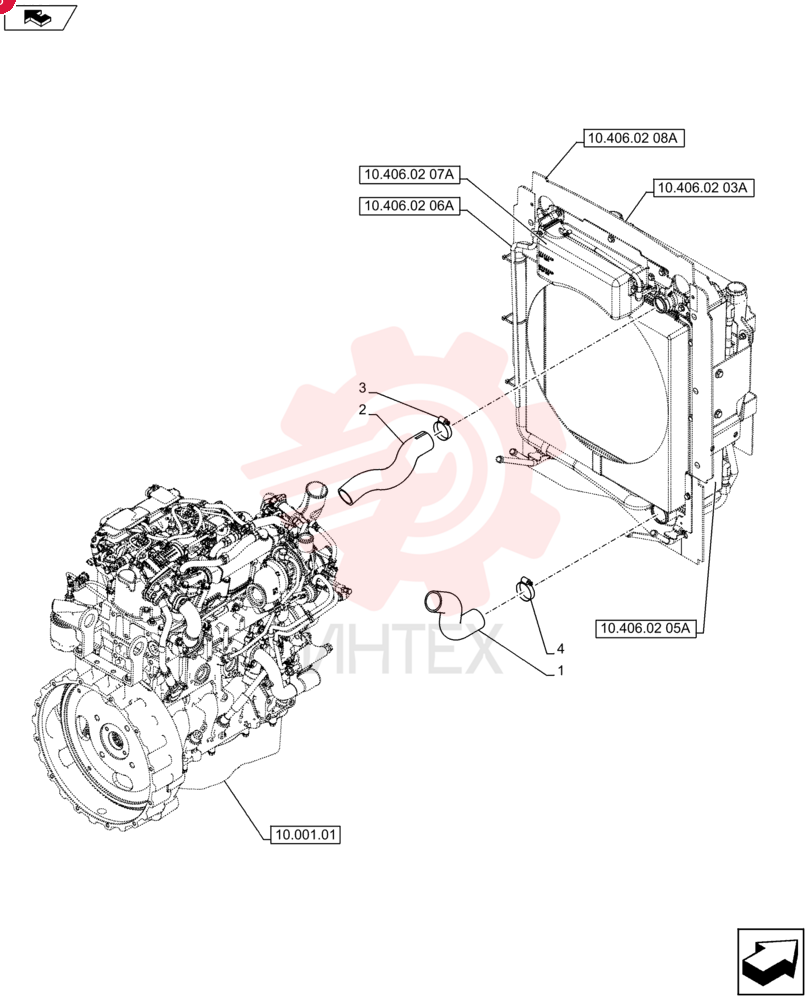

HOSE,57.00 mm ID x 217.70 mm, SAE J20, SAE J20R4 CLASS C 87407272 (2)

HOSE,57.00 mm ID x 217.70 mm, SAE J20, SAE J20R4 CLASS C 87407272 (2)

HOSE,57.00 mm ID x 217.70 mm, SAE J20, SAE J20R4 CLASS C 87407272 (2)

1 87407272

  • 87407272 - HOSE
  • 57.00 mm ID x 217.70 mm
  • SAE J20
  • SAE J20R4 CLASS C

2 87528978

  • 87528978 - RADIATOR HOSE
  • 45.00 mm ID x 76.50 mm
  • SAE J20
  • SAE 20 R4 Class C

3 87647029

  • 87647029 - HOSE CLAMP
  • 40-64mm

4 45014

  • 45014 - HOSE CLAMP
  • 2.06" - 3"
  • Worm
