New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

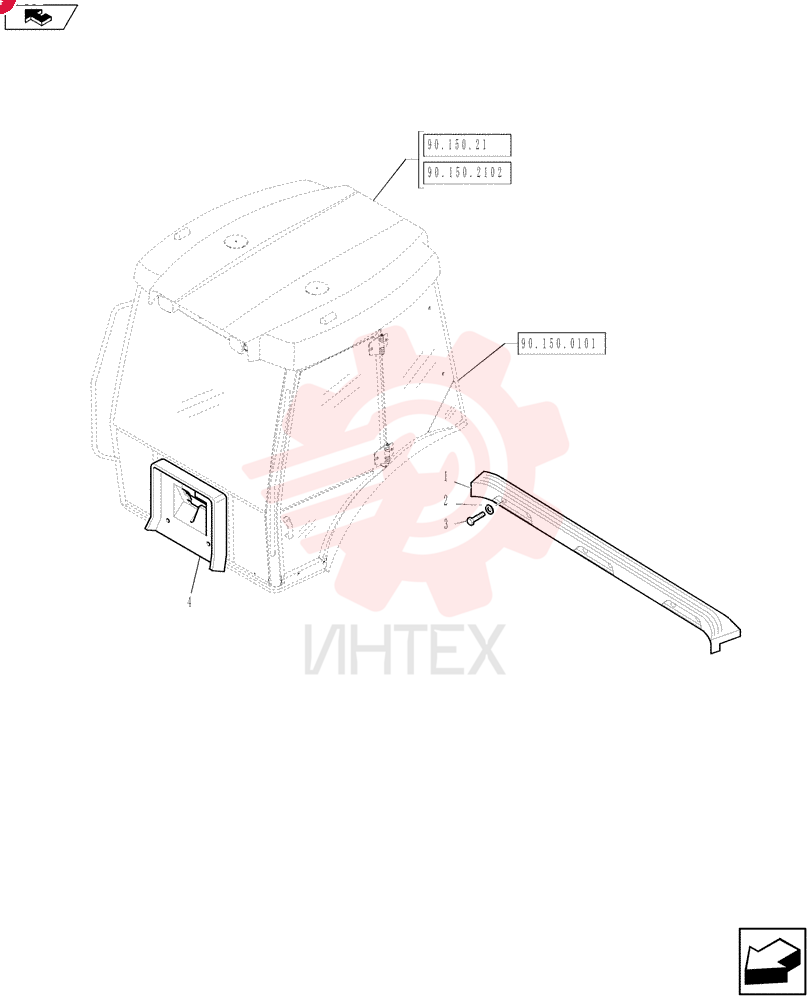

PANEL 87410385

PANEL 87410385

PANEL 87410385

1 87410385

  • 87410385 - PANEL

2 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

3 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

4 84478022

  • 84478022 - BULKHEAD
