(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

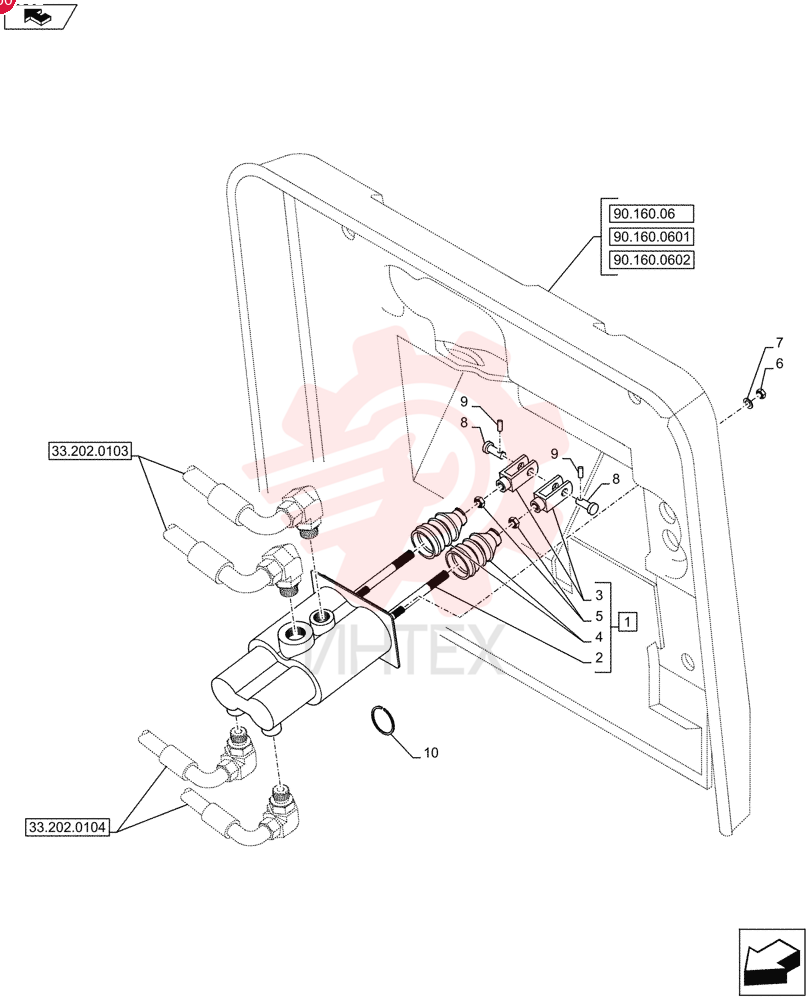

MASTER CYLINDER,130.25mm Stroke

MASTER CYLINDER,130.25mm Stroke

MASTER CYLINDER,130.25mm Stroke

1 87714038

  • 87714038 - MASTER CYLINDER
  • 130.25mm Stroke

2 NSS

  • NSS - NOT SOLD SEPARAT

3 87716970

  • 87716970 - CLEVIS
  • M10 x 1.5mm x 53.5mm L

4 87716969

  • 87716969 - BOOT

5 829-1410

  • 829-1410 - NUT
  • M10 x 1.5
  • Cl 10.9

6 832-10408

  • 832-10408 - NUT
  • M8 x 1.25
  • Cl 8.8

7 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

8 427-6106

  • 427-6106 - CLEVIS PIN
  • 9.53mm OD x 26.92mm L

9 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

10 13399076

  • 13399076 - CIRCLIP
  • 39mm ID x 42mm OD
