(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

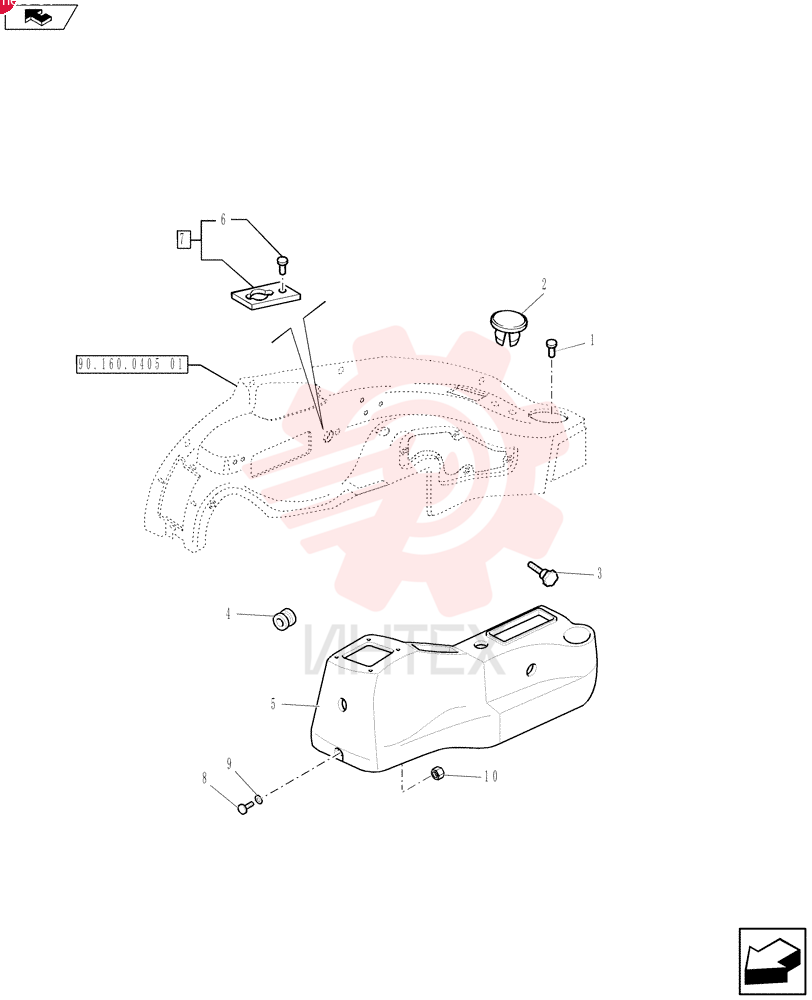

FASTENER,M8 x 1.5 x 22mm

FASTENER,M8 x 1.5 x 22mm

FASTENER,M8 x 1.5 x 22mm

1 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

2 79111815

  • 79111815 - PLUG
  • 14-15mm OD

3 85805323

  • 85805323 - KNOB

4 84422095

  • 84422095 - RUBBER BLOCK

5 87319785

  • 87319785 - SOFT TRIM

6 10427201

  • 10427201 - RIVET
  • 4mm OD x 5mm L

7 85827548

  • 85827548 - PLATE

8 13313417

  • 13313417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

9 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk

10 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8
