New Holland Construction
/

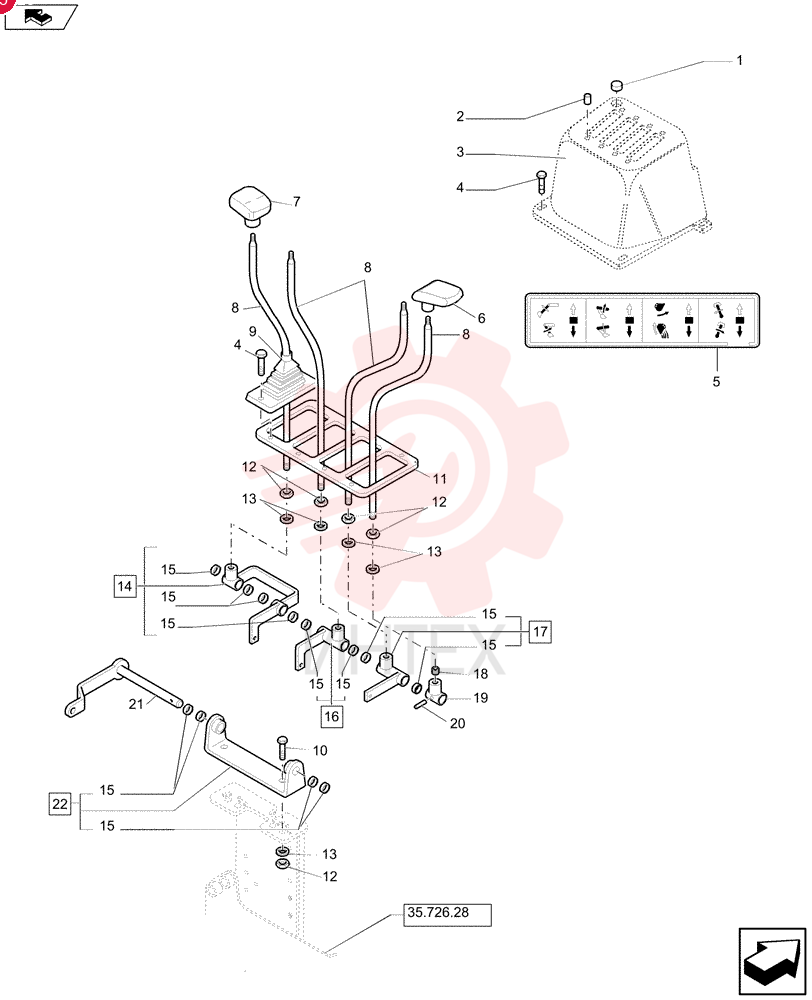

(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/
PLUG,28mm OD

PLUG,28mm OD

PLUG,28mm OD

1 85802227

  • 85802227 - PLUG
  • 28mm OD

2 85802259

  • 85802259 - THREADED BUSHING
  • M4 x 9.7mm OD x 20mm L

3 87319744

  • 87319744 - DASHBOARD

4 85827821

  • 85827821 -
  • Serial Range: -`0

5 13272477

  • 13272477 - SCREW
  • Pozidriv Pan Hd
  • M4 x 20mm
  • Full Thd
  • SST

6 85803917

  • 85803917 - DECAL

7 83962918

  • 83962918 - HANDLE

8 83962919

  • 83962919 - HANDLE

9 85804780

  • 85804780 - LEVER

10 85803382

  • 85803382 - BOOT

11 15540421

  • 15540421 - SCREW
  • Hex
  • M12 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd

12 85803540

  • 85803540 - PLATE

13 16101511

  • 16101511 - NUT
  • M12 x 1.25
  • Cl 8

14 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

15 85804801

  • 85804801 - BELLCRANK

16 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

17 85804794

  • 85804794 - BELLCRANK

18 85804791

  • 85804791 - BELLCRANK

19 13812631

  • 13812631 - SET SCREW
  • Hex Soc
  • M12 x 12mm
  • Flat Pt

20 85804787

  • 85804787 - BELLCRANK

21 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

22 85804782

  • 85804782 - PIN
  • 16mm OD x 219mm L

23 85802647

  • 85802647 - SUPPORT
