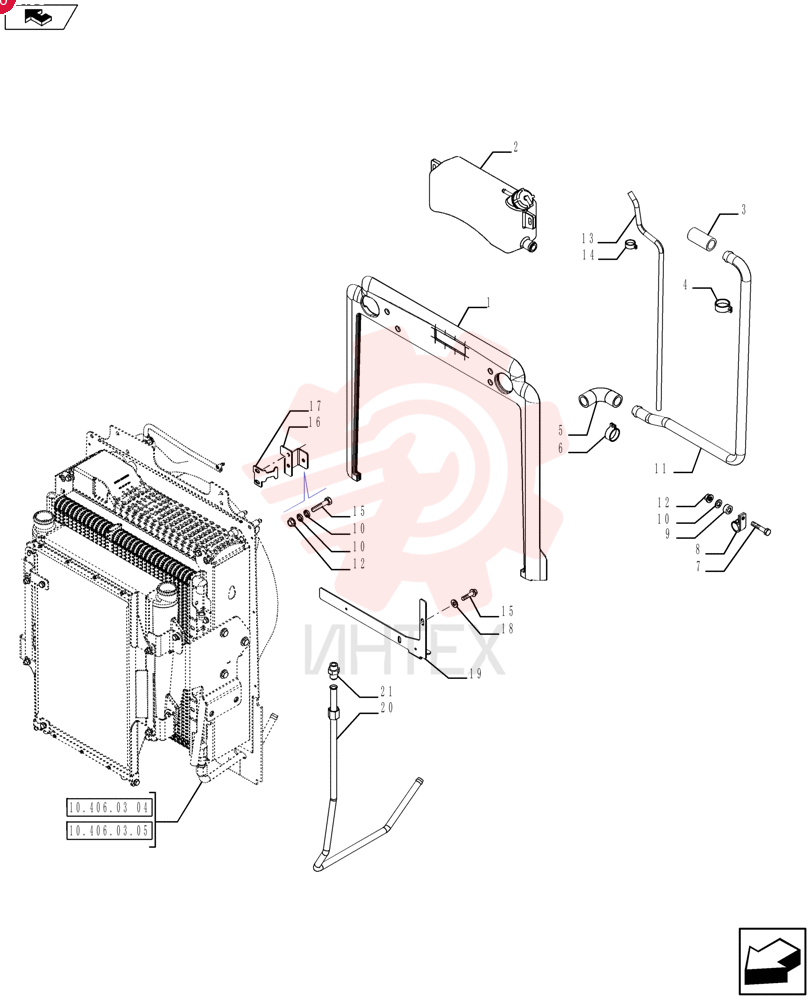

INSULATOR 84409718 (2)
1 84409718
- 84409718 - INSULATOR
2 87674844
- 87674844 - RESERVOIR
- COOLANT E
- 3L
3 87367622
- 87367622 - HOSE
- 25.40 mm ID x 60.00 mm
- SAE 20R3 CLASS D-1 Or D-2
4 87000312
- 87000312 - CABLE TIE
- 4.8mm W x 203.2mm OAL
- Nylon
5 87454376
- 87454376 - HOSE
- 25mm ID
- 29.95mm OD
- 90 Degree
6 514920
- 514920 - HOSE CLAMP
- 20.6mm - 38.1mm
- Worm Gear
7 120106
- 120106 - BOLT
- M8 x 1.25 x 45.45mm
- Cl 8.8
8 86637977
- 86637977 - CLAMP
- 25.4mm
- Coat
- 8.7mm Bolt Hole
- P Type
9 87418360
- 87418360 - SPACER
- 9.8mm ID x 16mm OD x 16mm W
10 86625263
- 86625263 - WASHER
- 9mm ID x 20mm OD x 1.6mm Thk
11 87557237
- 87557237 - TUBE
- 1" OD
12 412250
- 412250 - NUT
- M8 x 1.25
- Cl 8
13 87616934
- 87616934 - HOSE
- 6.35mm ID x 750mm L
- SAE 30R6
14 86625036
- 86625036 - CLAMP
- 12.7mm
- Coat
- 8.7mm Bolt Hole
- P Type
15 43128
- 43128 - BOLT
- M8 x 1.25 x 30mm
- Cl 8.8
16 84387349
- 84387349 - BRACKET
17 84387500
- 84387500 - BRACKET
18 140016
- 140016 - WASHER
- M8 x 16mm OD x 1.6mm Thk
19 87446082
- 87446082 - RETAINING PLATE
- 390mm x 195mm x 43mm L
20 87311219
- 87311219 - HOSE PROTECTION
- 16.80 mm ID x 250.00 mm
21 87301330
- 87301330 - HYD CONNECTOR
- 7/8" - 14 ORB x 7/8" - 14 JIC
