(B90B) - BACKHOE LOADER TIER 3 (2008)
/

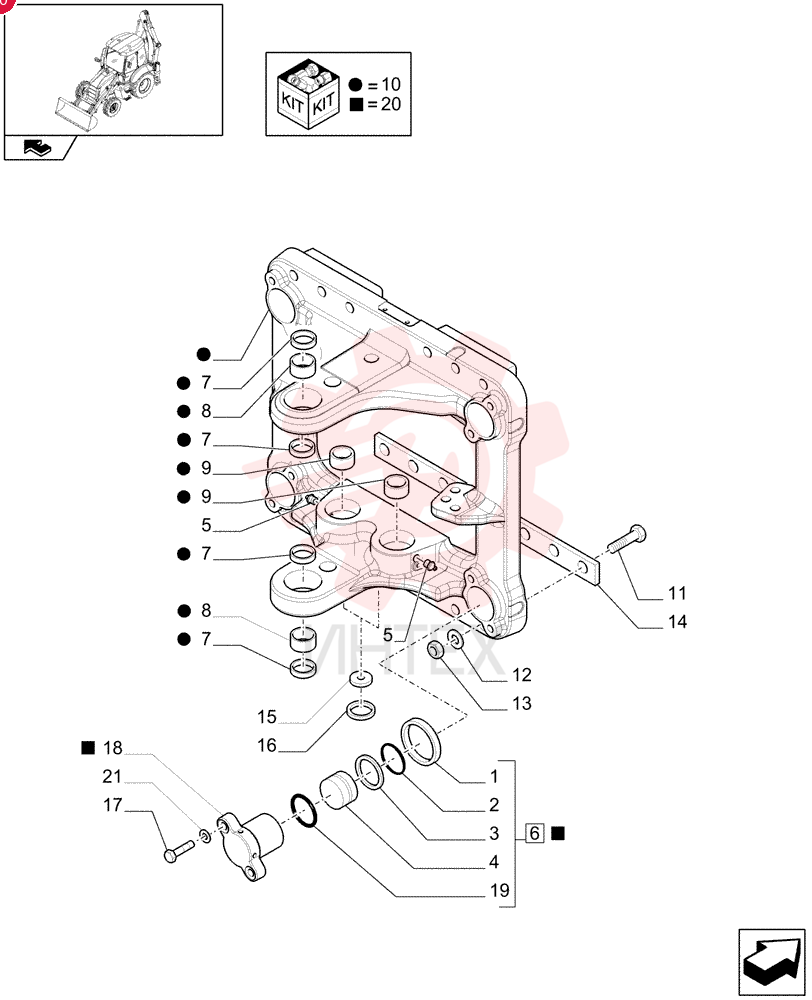

SEAL,66.80mm ID x 76mm OD x 9.45mm Thk

SEAL,66.80mm ID x 76mm OD x 9.45mm Thk

SEAL,66.80mm ID x 76mm OD x 9.45mm Thk

1 87583820

  • 87583820 - SEAL
  • 66.80mm ID x 76mm OD x 9.45mm Thk

2 G100443

  • G100443 - SEAL
  • 67.9mm ID x 77.1mm OD x 6.8mm Thk

3 G100444

  • G100444 - SEALING RING
  • Square
  • 5.28mm Thk x 62.61mm ID

4 87705787

  • 87705787 - PISTON

5 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

6 87705784

  • 87705784 - PISTON

7 81875248

  • 81875248 - SEAL
  • 70mm ID x 80.1mm OD x 5mm Thk

8 85700728

  • 85700728 - BUSHING
  • 70.24mm ID x 86.01mm OD x 50.5mm L

9 83910645

  • 83910645 - BUSHING
  • 70.35mm ID x 80.18mm OD x 32mm L

10 84520522

  • 84520522 - PLATE

11 15871934

  • 15871934 - BOLT
  • Hex
  • M24 x 2 x 140mm
  • Cl 10.9

12 11200679

  • 11200679 - LOCK WASHER
  • 24mm ID x 46mm OD x 6mm Thk

13 12164521

  • 12164521 - NUT
  • Hex
  • M24
  • 2mm Pitch
  • 19mm High
  • Cl 10

14 85801373

  • 85801373 - PLATE

15 85825426

  • 85825426 - COVER

16 11061874

  • 11061874 - RING
  • M78
  • Dac

17 374889

  • 374889 - BOLT
  • Hex
  • M16 x 100mm
  • Cl 8.8

18 87705786

  • 87705786 - CYLINDER
  • 76.2mm Rod

19 G100449

  • G100449 - WEAR RING
  • Split
  • 69.85mm ID x 76.2mm OD x 9.52mm Thk

20 87705760

  • 87705760 - CYLINDER

21 14496931

  • 14496931 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk
