(B90B) - BACKHOE LOADER TIER 3 (2008)
/

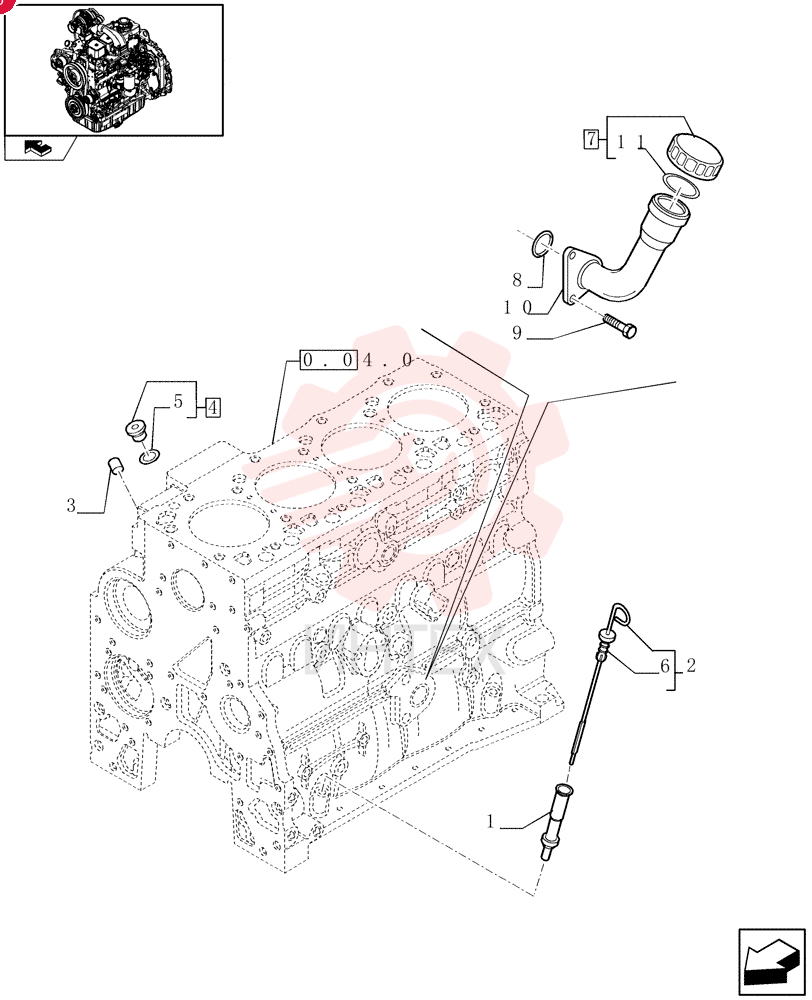

TUBE,81 mm Length

TUBE,81 mm Length

TUBE,81 mm Length

1 2852122

  • 2852122 - TUBE
  • 81 mm Length

2 2852125

  • 2852125 - DIPSTICK
  • 351.5mm L

3 4895406

  • 4895406 - EXPANSION PLUG
  • 9.8mm OD

4 4897330

  • 4897330 - HEX SOCKET PLUG
  • M12 x 1.5

5 4895610

  • 4895610 - O-RING
  • 2.2mm Thk x 9.3mm ID

6 2852127

  • 2852127 - GASKET
  • 5mm ID
  • 18mm OD
  • 13mm OD
  • 43mm L

7 2853410

  • 2853410 - FILLER CAP
  • Female

8 2852127

  • 2852127 - GASKET
  • 5mm ID
  • 18mm OD
  • 13mm OD
  • 43mm L

9 2852134

  • 2852134 - FLANGE BOLT
  • Hex
  • M12 x 1.75 x 25mm

10 2853407

  • 2853407 - NECK FILLER
  • 143
  • 117.3 mm Length

11 2853412

  • 2853412 - O-RING
  • 0.21" Thk x 1.475" ID
