New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

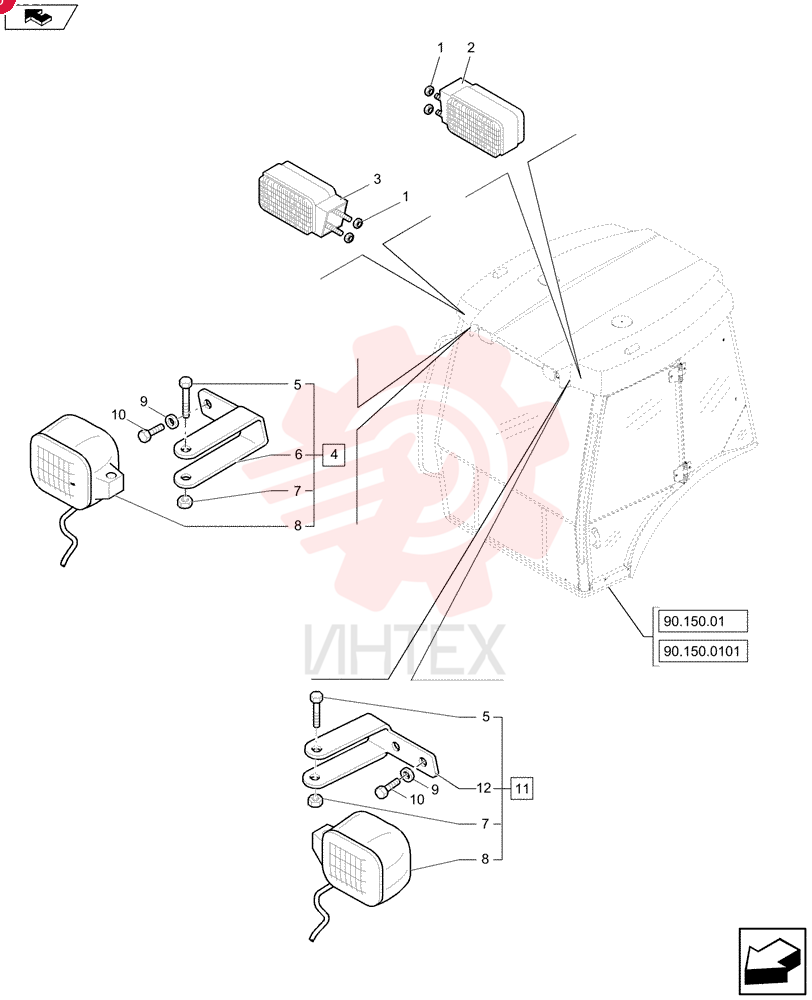

LOCK NUT,M5 x .8, Flg 14084111 (1)

LOCK NUT,M5 x .8, Flg 14084111 (1)

LOCK NUT,M5 x .8, Flg 14084111 (1)

1 14084111

  • 14084111 - LOCK NUT
  • M5 x .8
  • Flg

2 85819197

  • 85819197 - FRONT LAMP
  • 12V
  • 21W
  • Amber

3 85819196

  • 85819196 - FRONT LAMP
  • 12V
  • 21W
  • Amber

4 85819695

  • 85819695 - LIGHT
  • Halogen
  • 12V
  • 55W
  • Clear

5 16044324

  • 16044324 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8

6 85819190

  • 85819190 - BRACKET

7 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

8 85819200

  • 85819200 - WORK LAMP
  • Halogen
  • 12V
  • 55W
  • Clear

9 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

10 10902124

  • 10902124 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 8.8

11 85819696

  • 85819696 - LIGHT
  • Halogen
  • 12V
  • 55W
  • Clear

12 85819191

  • 85819191 - BRACKET
