New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

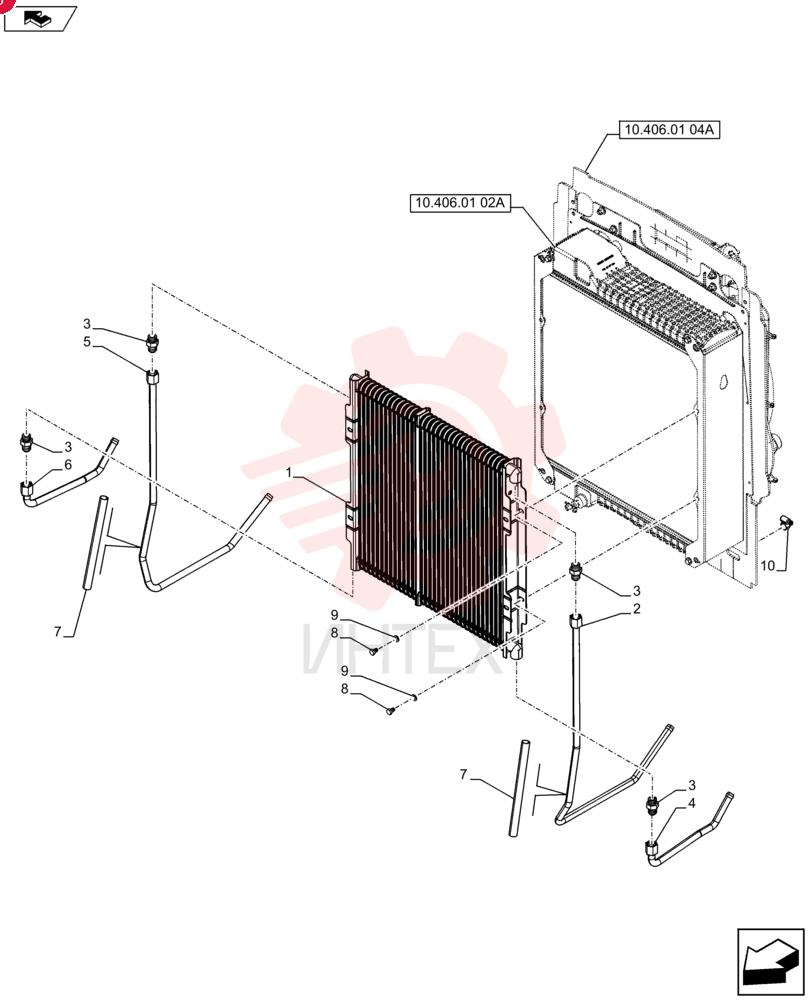

OIL COOLER 87441876 (2)

OIL COOLER 87441876 (2)

OIL COOLER 87441876 (2)

1 87441876

  • 87441876 - OIL COOLER

2 84485237

  • 84485237 - TUBE

3 87301330

  • 87301330 - HYD CONNECTOR
  • 7/8" - 14 ORB x 7/8" - 14 JIC

4 84485239

  • 84485239 - TUBE

5 84485233

  • 84485233 - TUBE

6 84485235

  • 84485235 - TUBE

7 87311219

  • 87311219 - HOSE PROTECTION
  • 16.80 mm ID x 250.00 mm

8 336199

  • 336199 - BOLT
  • Hex
  • M8 x 1.25 x 12mm
  • Cl 8.8
  • Full Thd

9 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk

10 86625021

  • 86625021 - HOSE CLAMP
  • 17.5mm - 31.7mm
  • Worm Gear
