(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

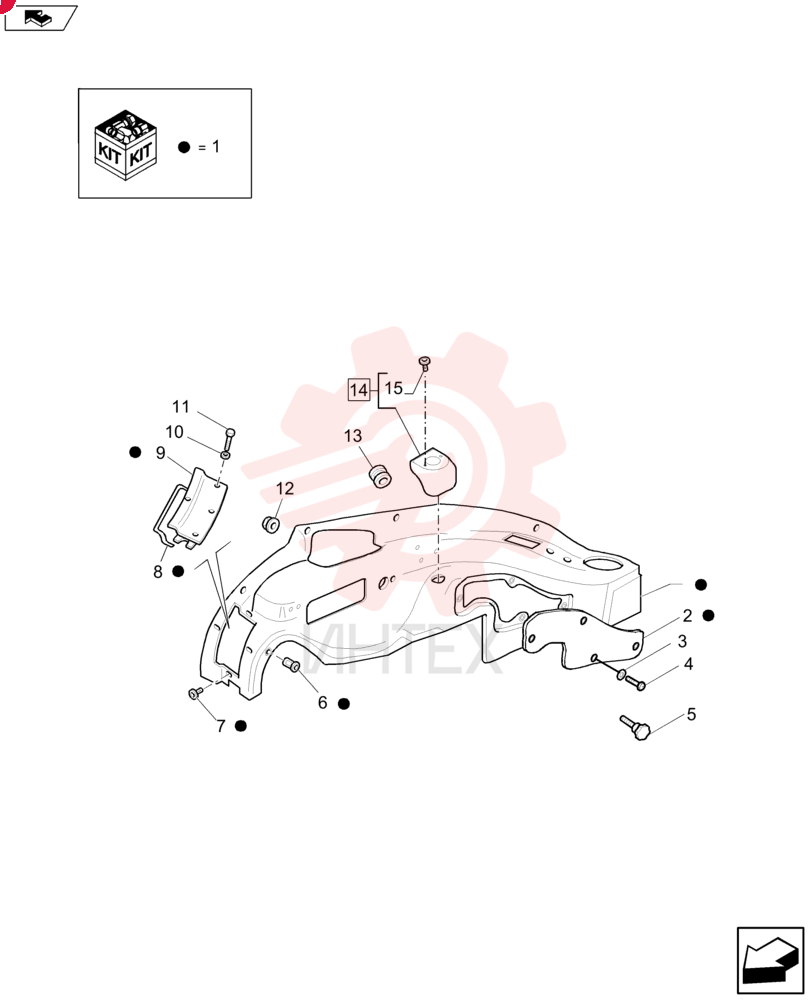

SOFT TRIM 87543716

SOFT TRIM 87543716

SOFT TRIM 87543716

1 87543716

  • 87543716 - SOFT TRIM

2 85801649

  • 85801649 - SOFT TRIM

3 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

4 16043428

  • 16043428 - SCREW
  • M8 x 1.25 x 20mm

5 85805323

  • 85805323 - KNOB

6 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

7 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L

8 85806023

  • 85806023 - SEALING STRIP

9 85825191

  • 85825191 - COVER

10 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

11 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

12 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

13 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

14 87540633

  • 87540633 - DASHBOARD

15 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L
