(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

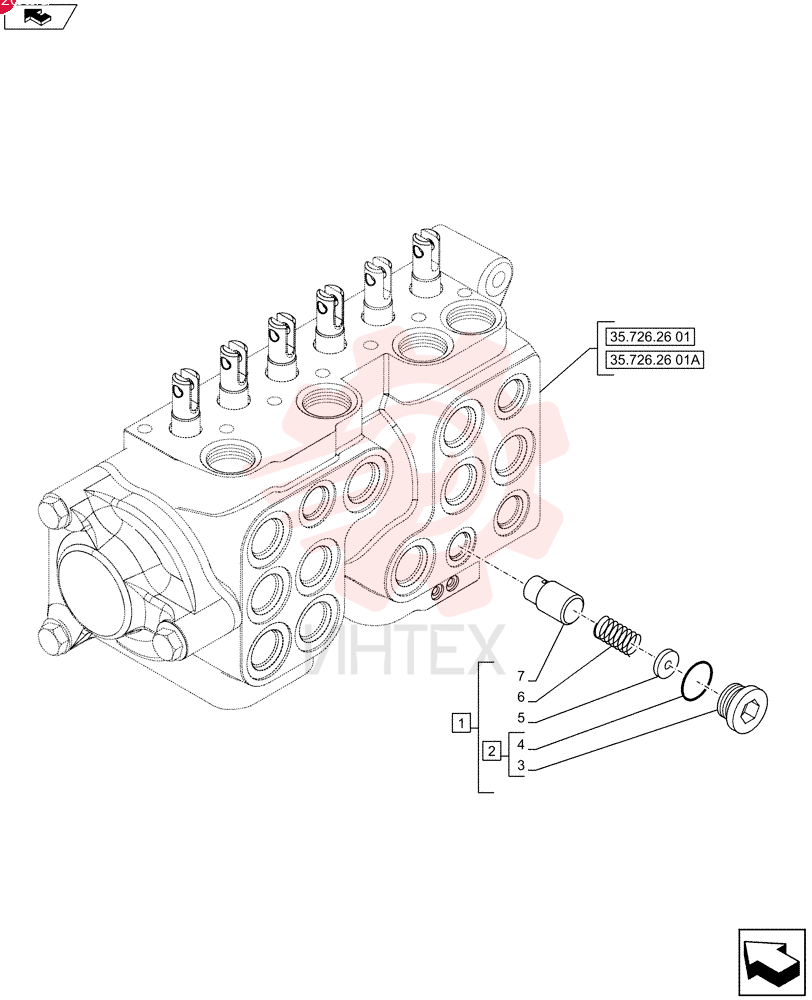

VALVE, CHECK 87428486 (1)

VALVE, CHECK 87428486 (1)

VALVE, CHECK 87428486 (1)

1 87428486

  • 87428486 - VALVE
  • CHECK

2 87455593

  • 87455593 - PLUG
  • 7/8" - 14 ORB

3 NSS

  • NSS - NOT SOLD SEPARAT

4 87455974

  • 87455974 - O-RING
  • 0.097" Thk x 0.755" ID

5 87455594

  • 87455594 - WASHER

6 87455595

  • 87455595 - SPRING

7 87455596

  • 87455596 - PISTON
