(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

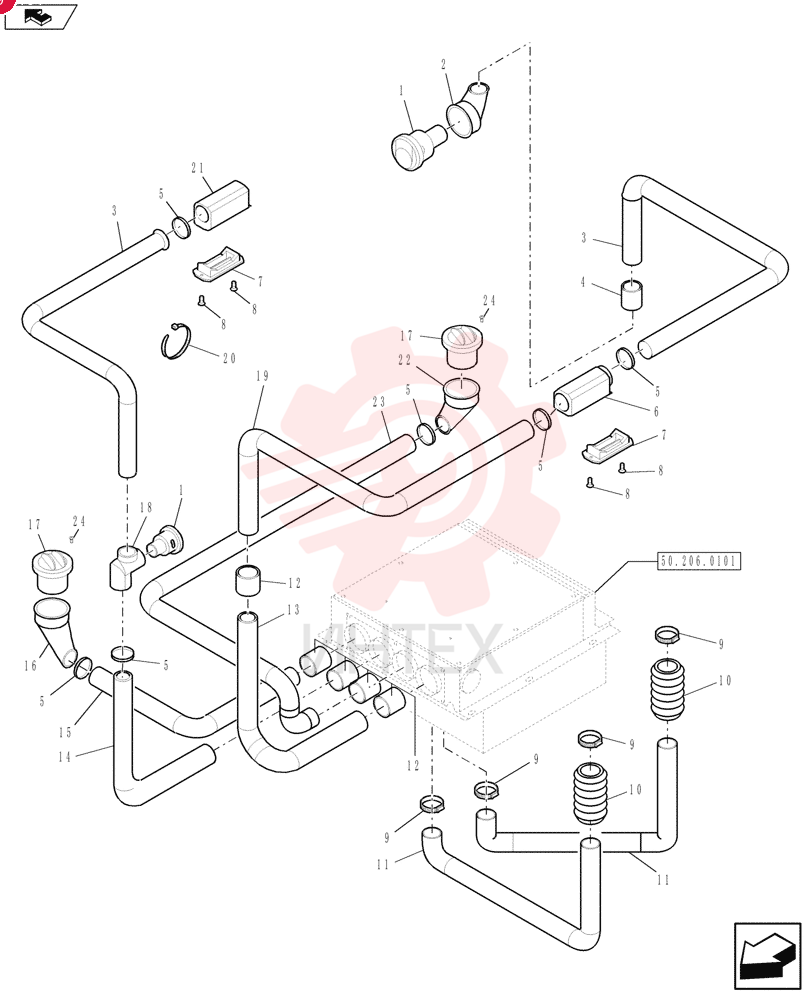

OUTLET 87362068 (3)

OUTLET 87362068 (3)

OUTLET 87362068 (3)

1 87362068

  • 87362068 - OUTLET

2 85819453

  • 85819453 - ELBOW

3 87314772

  • 87314772 - AIR DUCT
  • 45mm D x 1000mm L

4 85819451

  • 85819451 - HOSE
  • 42.00 mm ID x 52.00 mm

5 13000690

  • 13000690 - HOSE CLAMP
  • 32mm - 50mm
  • Worm Gear

6 87314947

  • 87314947 - DISTRIBUTOR

7 85819454

  • 85819454 - DIFFUSER

8 14440327

  • 14440327 - SCREW
  • Flat Csk Hd
  • M4 x 20mm
  • Cl 8.8

9 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

10 87314769

  • 87314769 - AIR DUCT
  • 1800mm L

11 87314767

  • 87314767 - AIR DUCT
  • 1800mm L

12 85819452

  • 85819452 - HOSE
  • 47.00 mm ID x 52.00 mm

13 87319448

  • 87319448 - AIR DUCT
  • 45mm D x 1500mm L

14 87314771

  • 87314771 - AIR DUCT
  • 45mm D x 1600mm L

15 87319443

  • 87319443 - AIR DUCT
  • 45mm D x 700mm L

16 87652770

  • 87652770 - ELBOW

17 87362065

  • 87362065 - DIFFUSER

18 87314948

  • 87314948 - ELBOW

19 87314773

  • 87314773 - AIR DUCT
  • 45mm D x 1000mm L

20 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

21 87314946

  • 87314946 - DISTRIBUTOR

22 87652764

  • 87652764 - ELBOW

23 87319437

  • 87319437 - AIR DUCT
  • 45mm D x 2000mm L

24 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm
