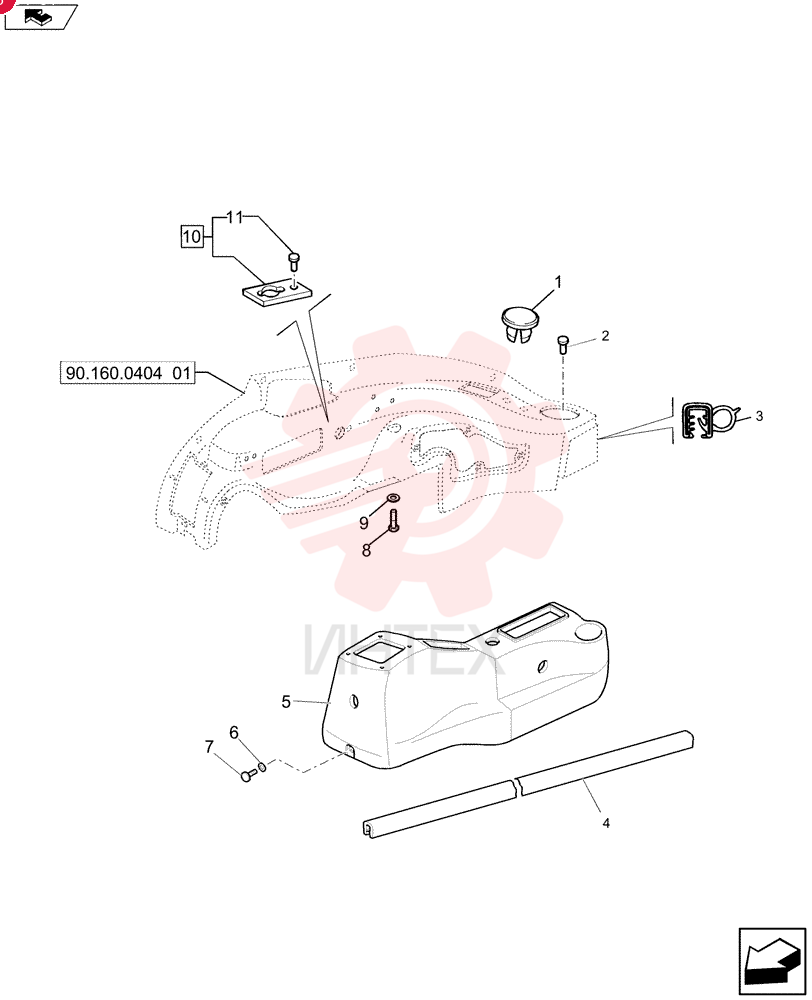

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
PLUG,14-15mm OD 79111815 (5)

PLUG,14-15mm OD 79111815 (5)

PLUG,14-15mm OD 79111815 (5)

1 79111815

  • 79111815 - PLUG
  • 14-15mm OD

2 85808460

  • 85808460 - PLUG

3 85819016

  • 85819016 - RUBBER STRIP

4 85812081

  • 85812081 - RUBBER STRIP

5 84130012

  • 84130012 - CONSOLE

6 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

7 14441521

  • 14441521 - SCREW
  • Flat Csk Hd
  • M6 x 25mm
  • Cl 8.8

8 13274217

  • 13274217 - SCREW
  • Pozidriv Pan Hd
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

9 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk

10 85827548

  • 85827548 - PLATE

11 10427201

  • 10427201 - RIVET
  • 4mm OD x 5mm L
