New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

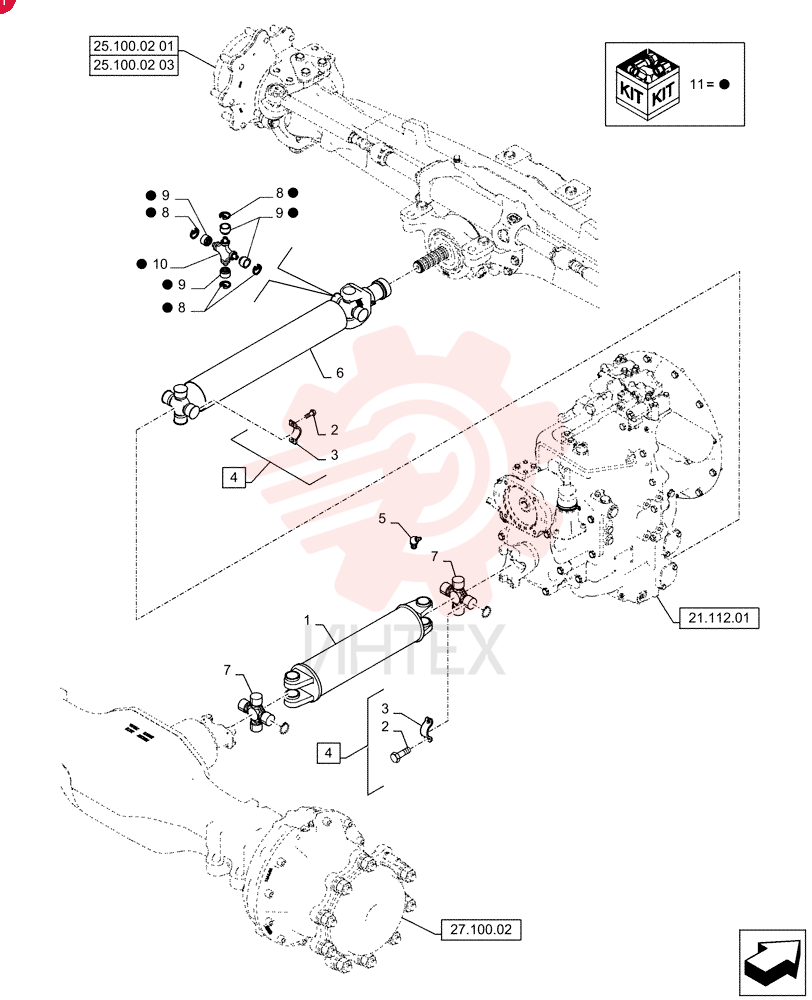

PROPELLER SHAFT,201.9mm L 84120429 (2)

PROPELLER SHAFT,201.9mm L 84120429 (2)

PROPELLER SHAFT,201.9mm L 84120429 (2)

1 84120429

  • 84120429 - PROPELLER SHAFT
  • 201.9mm L

2 87311153

  • 87311153 - BOLT
  • Hex
  • 5/16" - 24 x 19mm

3 84362391

  • 84362391 - LOCK BOLT
  • Hex
  • M8 x 19mm

4 87311152

  • 87311152 - CLAMP

5 84362392

  • 84362392 - STRAP
  • 60.5mm L

6 87311154

  • 87311154 - KIT

7 84362369

  • 84362369 - KIT

8 87559778

  • 87559778 - LUBE NIPPLE

9 84120458

  • 84120458 - PROPELLER SHAFT
  • 659mm L

10 84512471

  • 84512471 - SERVICE KIT
  • Drive Shaft

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 393231A1

  • 393231A1 - SPIDER
