(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

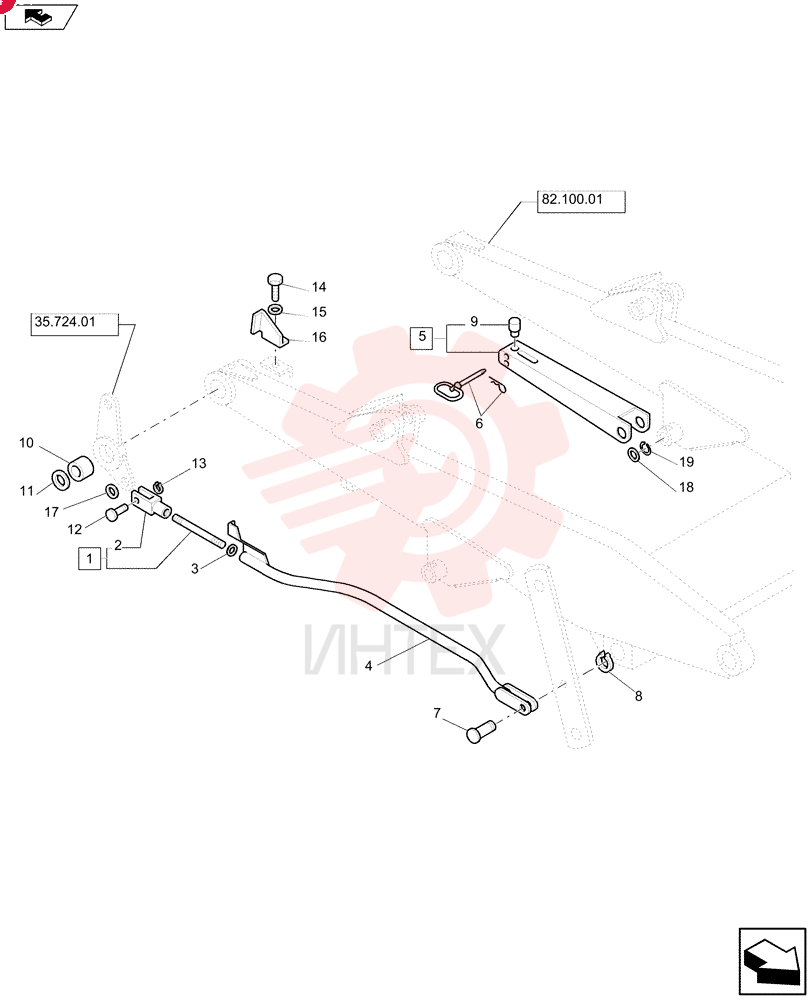

ROD 83963433 (1)

ROD 83963433 (1)

ROD 83963433 (1)

1 83963433

  • 83963433 - ROD

2 83962659

  • 83962659 - CLEVIS
  • M12

3 86511324

  • 86511324 - WASHER
  • 13mm ID x 24mm OD x 2.5mm Thk

4 85804026

  • 85804026 - SHAFT
  • 1985mm L

5 85802405

  • 85802405 - PILLAR

6 86507337

  • 86507337 - HITCH PIN
  • 12.7mm OD x 133.32mm L

7 85803297

  • 85803297 - PIN
  • 15.9mm OD x 43mm L

8 16165174

  • 16165174 - CIRCLIP
  • M16

9 85802403

  • 85802403 - PLUG
  • 13mm OD

10 83963422

  • 83963422 - SPACER
  • 21.92mm ID x 30.02mm OD x 28mm L

11 85804366

  • 85804366 - WASHER
  • 20.5mm ID x 51mm OD x 5mm Thk

12 85819179

  • 85819179 - PIN
  • 12mm OD x 32mm L

13 86979020

  • 86979020 - CIRCLIP
  • M9

14 378056

  • 378056 - BOLT
  • Hex
  • M6 x 10mm
  • Cl 8.8

15 14496431

  • 14496431 - WASHER
  • 6.4mm ID x 12.5mm OD x 1.6mm Thk

16 84365333

  • 84365333 - PLATE

17 85817623

  • 85817623 - WASHER
  • 12mm ID x 24mm OD x 1.5mm Thk

18 81902463

  • 81902463 - RING
  • 35.306mm ID x 2.769mm Thk

19 81900328

  • 81900328 - WASHER
  • 38.48mm ID x 57.15mm OD x 2.9mm Thk
