(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

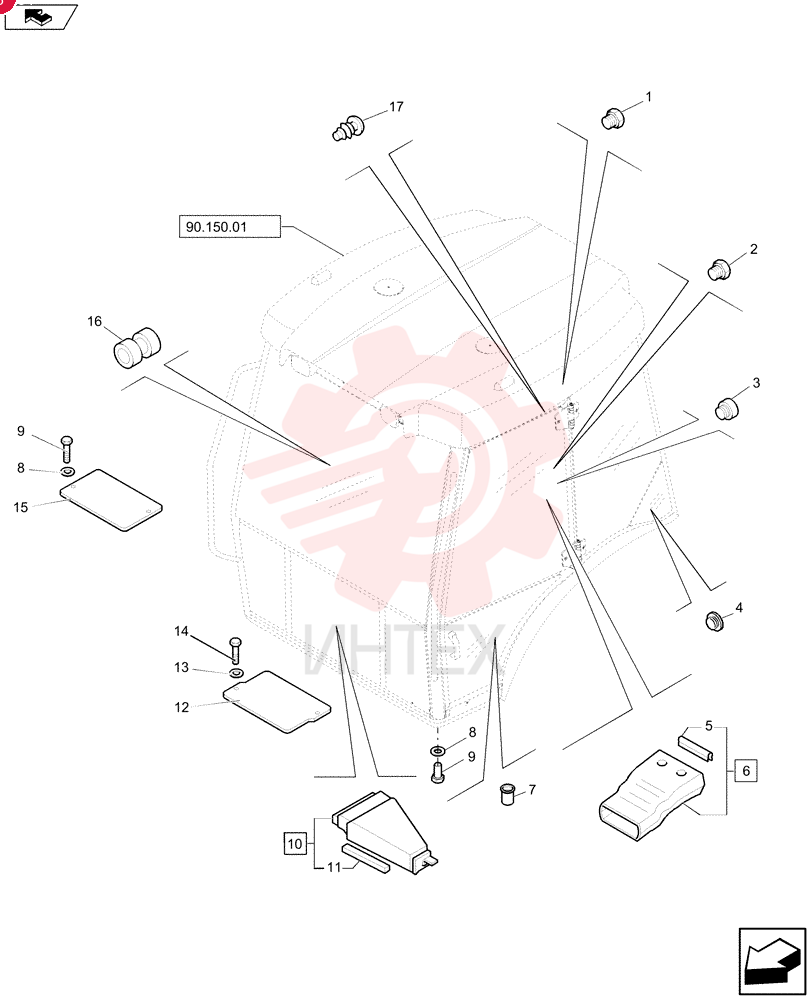

PLUG,4.5-5.7mm OD 83994150 (2)

PLUG,4.5-5.7mm OD 83994150 (2)

PLUG,4.5-5.7mm OD 83994150 (2)

1 83994150

  • 83994150 - PLUG
  • 4.5-5.7mm OD

2 79111978

  • 79111978 - PLUG
  • 23mm OD

3 85802309

  • 85802309 - PLUG
  • 17mm OD

4 85802227

  • 85802227 - PLUG
  • 28mm OD

5 85812021

  • 85812021 - SEAL
  • 555mm L x 25mm W x 13mm Thk

6 85820141

  • 85820141 - AIR DUCT

7 85801953

  • 85801953 - RIVET
  • M6

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

10 85805200

  • 85805200 - AIR DUCT

11 85806023

  • 85806023 - SEALING STRIP

12 85801968

  • 85801968 - PLATE

13 11198074

  • 11198074 - BELLEVILLE WASHER
  • M8 Bolt Size x 15mm OD x 1.8mm Thk

14 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

15 85802225

  • 85802225 - COVER

16 10398580

  • 10398580 - GROMMET
  • 22mm ID x 30mm GRV ø x 38mm OD x 13mm Thk

17 85802310

  • 85802310 - PLUG
  • Black
