(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

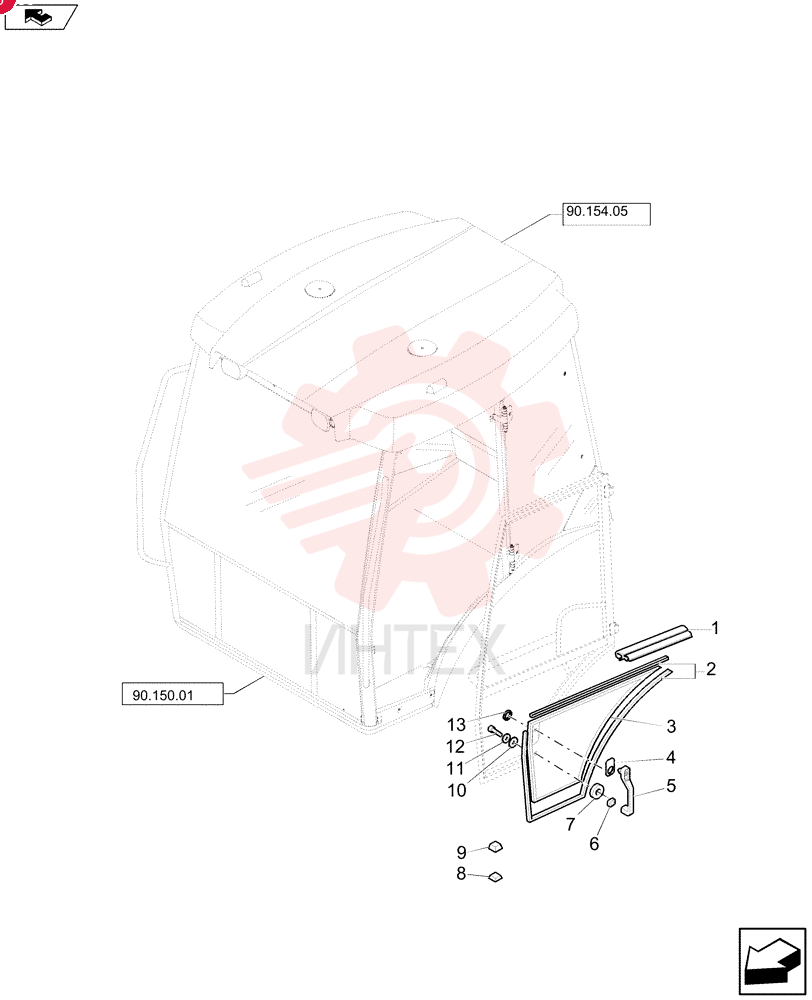

SEAL 85805065 (2)

SEAL 85805065 (2)

SEAL 85805065 (2)

1 85805065

  • 85805065 - SEAL

2 85802334

  • 85802334 - RUBBER SEAL

3 85801624

  • 85801624 - CAB GLASS

4 85801625

  • 85801625 - CAB GLASS

5 85801799

  • 85801799 - RUBBER SEAL

6 85805659

  • 85805659 - HANDLE

7 85801800

  • 85801800 - RUBBER SEAL

8 85801801

  • 85801801 - RUBBER SEAL
  • 6mm ID x 24mm OD x 2mm Thk

9 85802224

  • 85802224 - SPACER
  • 10mm L x 10mm W x 2.5mm Thk

10 85802223

  • 85802223 - SPACER
  • 12mm L x 12mm W x 5.5mm Thk

11 83961987

  • 83961987 - SPACER
  • 6.2mm ID x 12.5mm OD x 10mm L

12 12640601

  • 12640601 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

13 13276621

  • 13276621 - SCREW
  • Pozidriv Pan Hd
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

14 85802307

  • 85802307 - SEAL
  • 28.5mm ID x 44mm OD x 2mm Thk
