(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

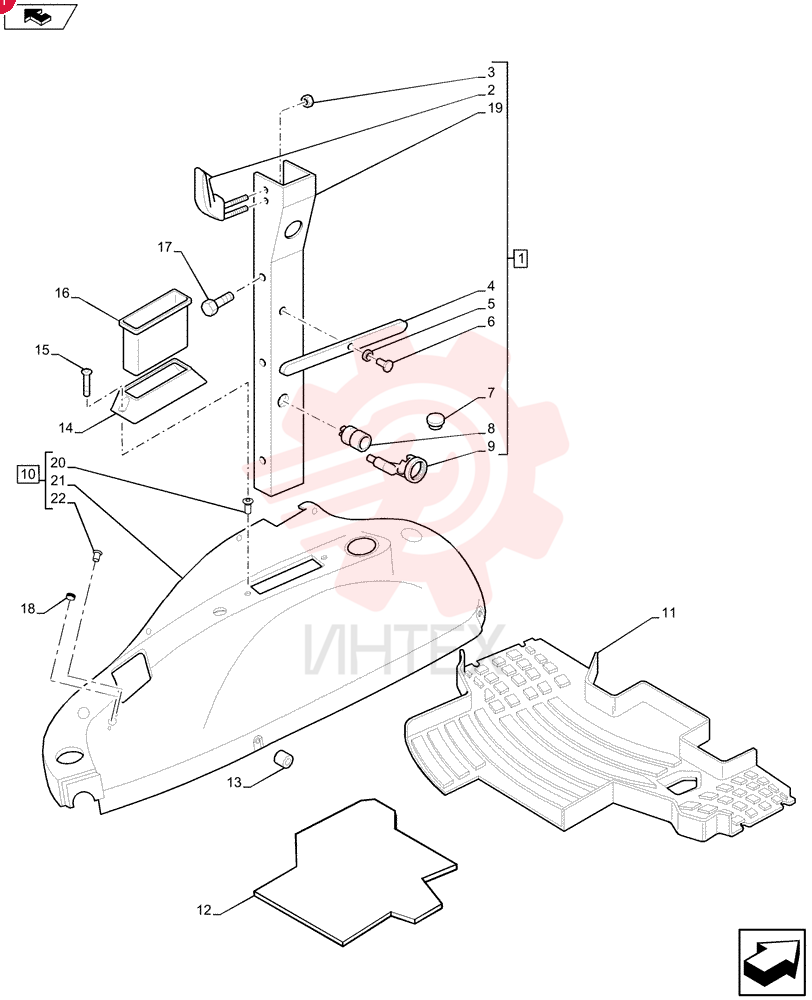

SOFT TRIM 85819287 (2)

SOFT TRIM 85819287 (2)

SOFT TRIM 85819287 (2)

1 85819287

  • 85819287 - SOFT TRIM

2 5178468

  • 5178468 - COAT HOOK

3 14084011

  • 14084011 - FLANGE NUT
  • M4 x .7
  • Flg

4 83961823

  • 83961823 - STRAP
  • 800mm L

5 12624101

  • 12624101 - WASHER
  • M5 x 22 x 2

6 85806154

  • 85806154 - RIVET

7 79111978

  • 79111978 - PLUG
  • 23mm OD

8 5148132

  • 5148132 - LAMP SOCKET

9 5148131

  • 5148131 - HOUSING

10 87362098

  • 87362098 - SOFT TRIM

11 87491065

  • 87491065 - CARPET

12 87491067

  • 87491067 - COVER

13 15627011

  • 15627011 - RIVET
  • Flat
  • M6 OD x 15.5mm L

14 85801651

  • 85801651 - HOUSING

15 13276617

  • 13276617 - SCREW
  • Pozidriv Pan Hd
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

16 85801979

  • 85801979 - CONTAINER

17 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

18 82001909

  • 82001909 - PLUG
  • 33mm OD

19 NSS

  • NSS - NOT SOLD SEPARAT

20 85805347

  • 85805347 - THREADED BUSHING
  • M6 x 9.7mm OD x 20mm L

21 NSS

  • NSS - NOT SOLD SEPARAT

22 85802259

  • 85802259 - THREADED BUSHING
  • M4 x 9.7mm OD x 20mm L
