New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

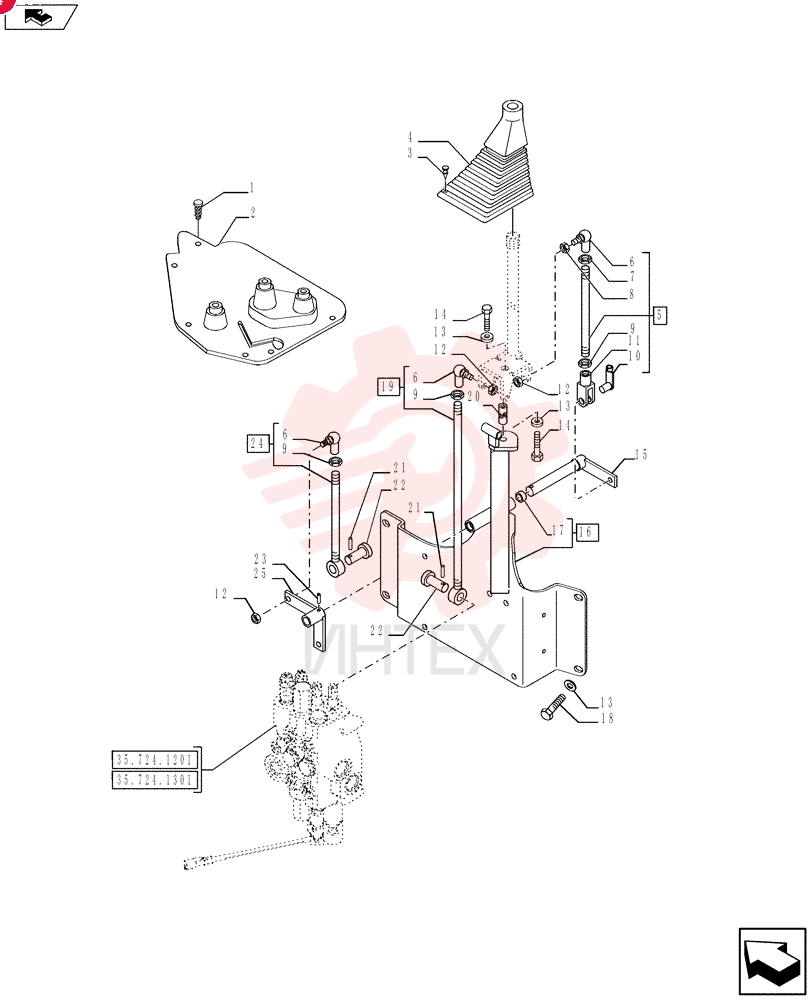

PLUG,Black 85808422

PLUG,Black 85808422

PLUG,Black 85808422

1 85808422

  • 85808422 - PLUG
  • Black

2 85804539

  • 85804539 - COVER

3 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

4 85802842

  • 85802842 - BOOT

5 85801562

  • 85801562 - TIE-ROD
  • M8 x 221.5mm L

6 85804375

  • 85804375 - BALL JOINT
  • M8

7 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

8 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

9 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

10 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

11 11991971

  • 11991971 - CLEVIS
  • M8

12 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

13 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

14 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

15 85805692

  • 85805692 - PIN
  • 16mm OD x 169.5mm L

16 84176889

  • 84176889 - BRACKET

17 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

18 86629541

  • 86629541 - BOLT
  • Hex
  • M12 x 1.75 x 40mm
  • Cl 8.8

19 84166079

  • 84166079 - THREADED ROD
  • M8 x 310.6mm L

20 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

21 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

22 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

23 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L

24 84166078

  • 84166078 - THREADED ROD
  • M8 x 10.3.4mm L

25 85805690

  • 85805690 - LEVER
