New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

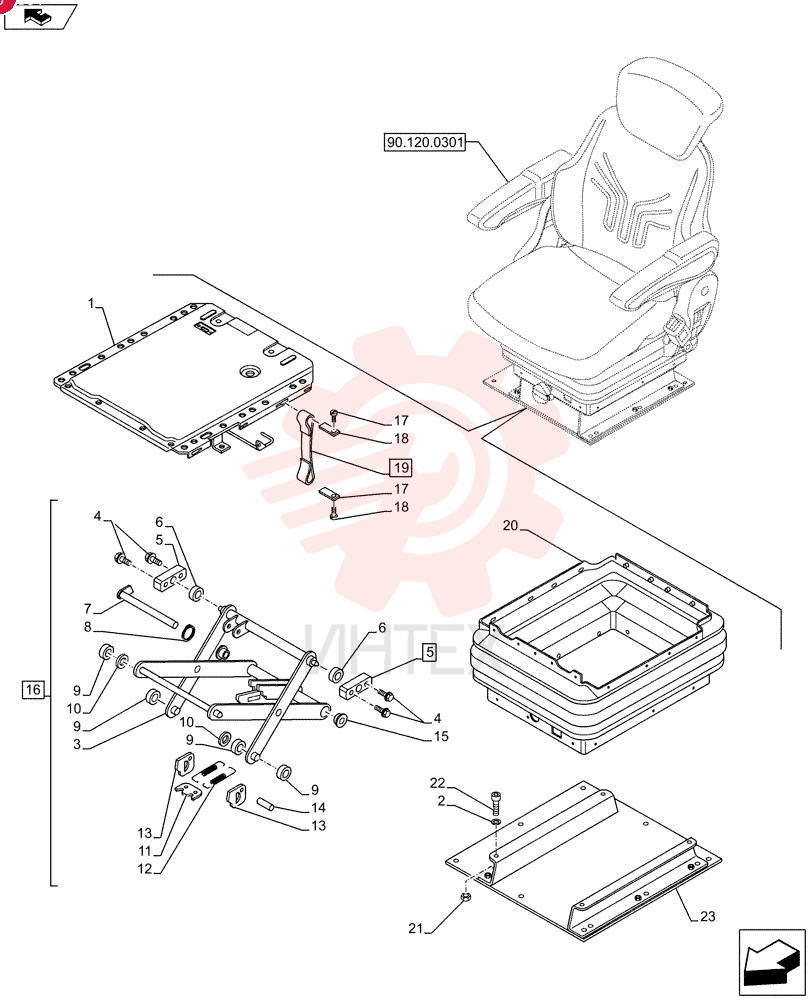

PLATE 85817450 (3)

PLATE 85817450 (3)

PLATE 85817450 (3)

1 85817450

  • 85817450 - PLATE

2 82034881

  • 82034881 - WASHER
  • 8.4mm ID

3 NSS

  • NSS - NOT SOLD SEPARAT

4 85817444

  • 85817444 - SCREW
  • M6 x 16mm

5 86024670

  • 86024670 - KIT

6 85817445

  • 85817445 - BUSHING

7 85817429

  • 85817429 - PIN

8 82035127

  • 82035127 - WASHER
  • M9

9 9958784

  • 9958784 - SPACER

10 85817442

  • 85817442 - BUSHING

11 9958782

  • 9958782 - PLATE

12 84171414

  • 84171414 - TENSION SPRING

13 9958792

  • 9958792 - PLATE

14 9958793

  • 9958793 - BOLT

15 82035048

  • 82035048 - BUSHING

16 85817446

  • 85817446 - SUSPENSION

17 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

18 85817449

  • 85817449 - PLATE

19 85817447

  • 85817447 - HANDLE

20 85817428

  • 85817428 - BELLOWS

21 82034880

  • 82034880 - NUT
  • M8

22 82034893

  • 82034893 - SCREW
  • M8 x 1.25 x 1.25mm

23 84332462

  • 84332462 - SUPPORT

24 47931173

  • 47931173 - SUPPORT
