New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

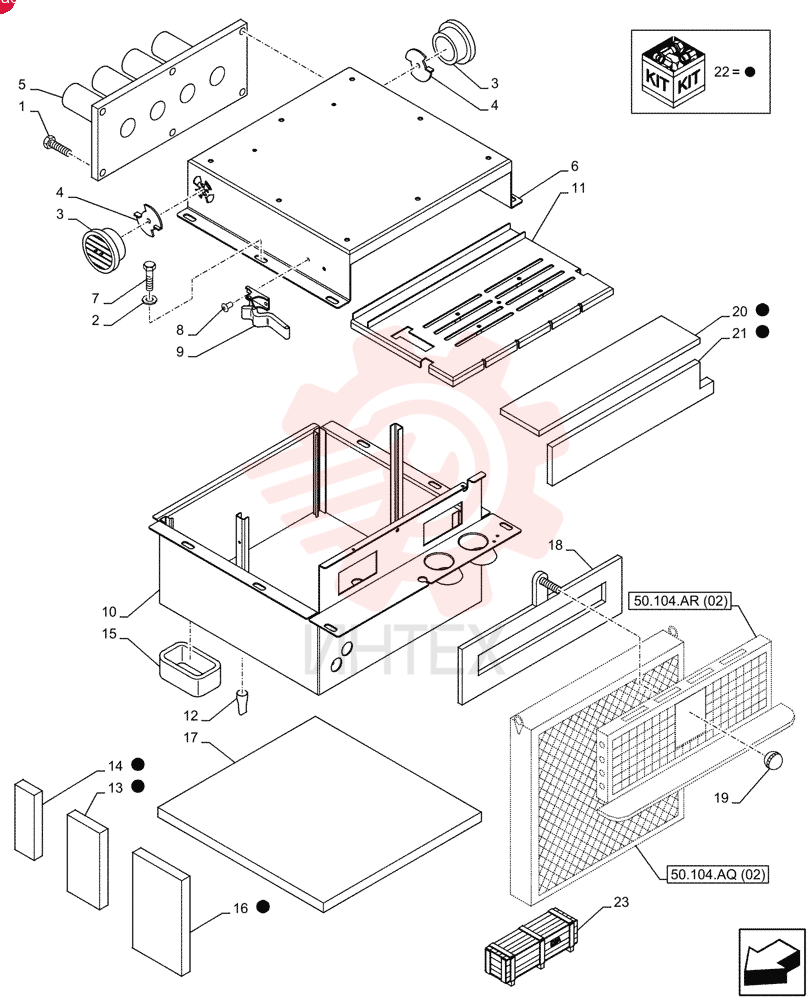

SCREW 85819184 (1)

SCREW 85819184 (1)

SCREW 85819184 (1)

1 85819184

  • 85819184 - SCREW

2 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

3 87362068

  • 87362068 - OUTLET

4 87618261

  • 87618261 - BAFFLE

5 87314357

  • 87314357 - AIR DUCT

6 87618272

  • 87618272 - COVER

7 16043624

  • 16043624 - SCREW
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

8 87358141

  • 87358141 - RIVET

9 87358140

  • 87358140 - HANDLE GRIP

10 87314323

  • 87314323 - HOUSING

11 87314355

  • 87314355 - BOTTOM

12 87315029

  • 87315029 - DUST VALVE

13 NSS

  • NSS - NOT SOLD SEPARAT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 87314730

  • 87314730 - FOAM INSULATION

16 NSS

  • NSS - NOT SOLD SEPARAT

17 87314520

  • 87314520 - FOAM INSULATION

18 87314350

  • 87314350 - LID

19 87314353

  • 87314353 - KNOB

20 NSS

  • NSS - NOT SOLD SEPARAT

21 NSS

  • NSS - NOT SOLD SEPARAT

22 87314518

  • 87314518 - FOAM INSULATION

23 741346049

  • 741346049 - DIA KIT
  • TLB

24 87567693

  • 87567693 - CONVERSION KIT
