(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

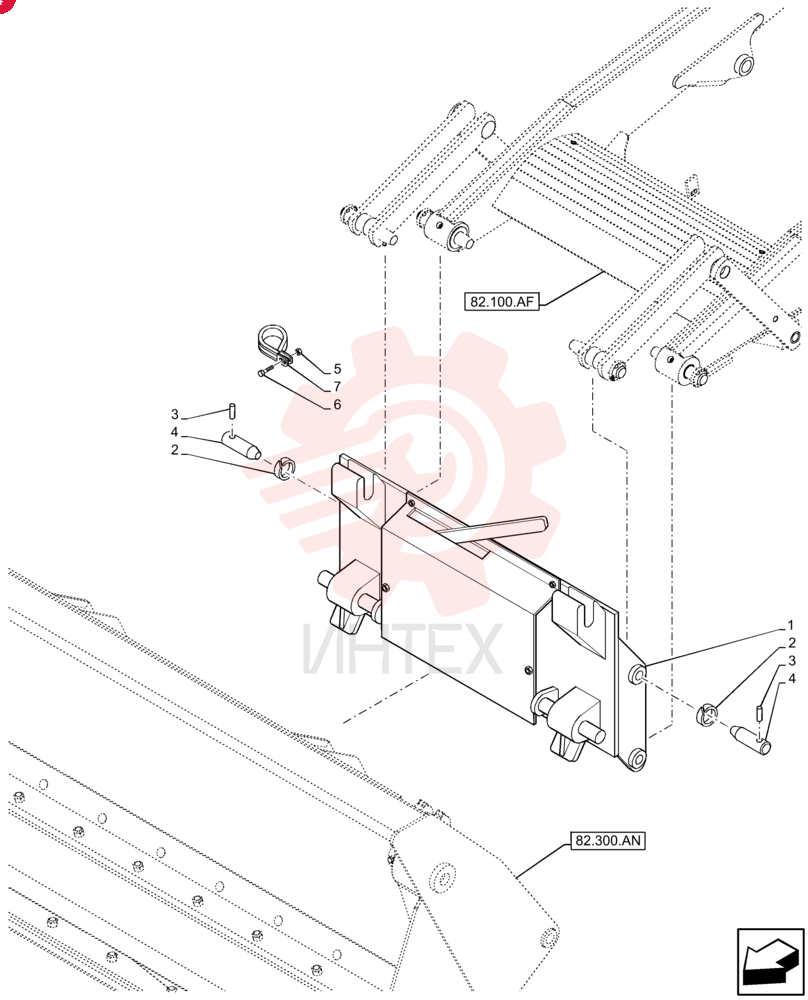

RETAINING PLATE 85824397

RETAINING PLATE 85824397

RETAINING PLATE 85824397

1 85824397

  • 85824397 - RETAINING PLATE

2 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

3 85801051

  • 85801051 - PIN
  • 38.1mm OD x 205mm L

4 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

5 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

6 16043921

  • 16043921 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

7 85803393

  • 85803393 - CLAMP
  • 18mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type
