(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

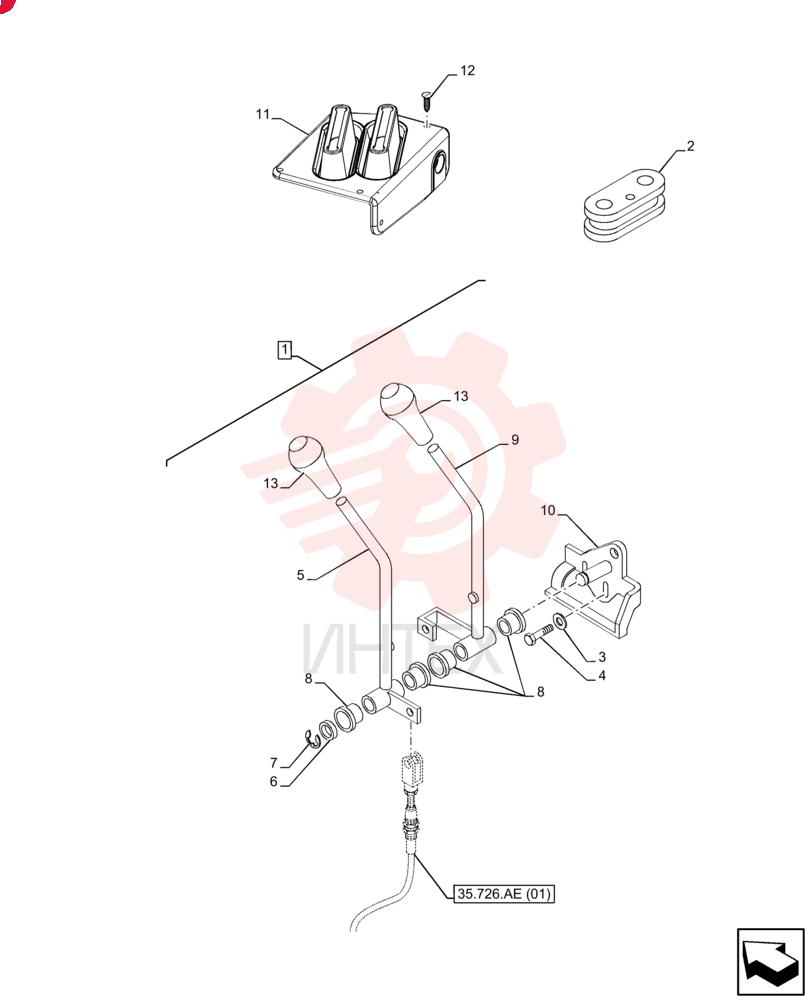

TRIP ARM 85813100

TRIP ARM 85813100

TRIP ARM 85813100

1 85813100

  • 85813100 - TRIP ARM

2 87439572

  • 87439572 - GROMMET
  • 2 Holes
  • 122.5mm L x 47mm W x 20mm Thk

3 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 16043624

  • 16043624 - SCREW
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

5 85813135

  • 85813135 - LEVER

6 85813137

  • 85813137 - WASHER

7 85813138

  • 85813138 - CIRCLIP

8 85813136

  • 85813136 - BUSHING

9 85813134

  • 85813134 - LEVER

10 85813133

  • 85813133 - SUPPORT

11 85821316

  • 85821316 - BOOT

12 85827850

  • 85827850 - PLUG
  • Black

13 85802763

  • 85802763 - KNOB
