New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

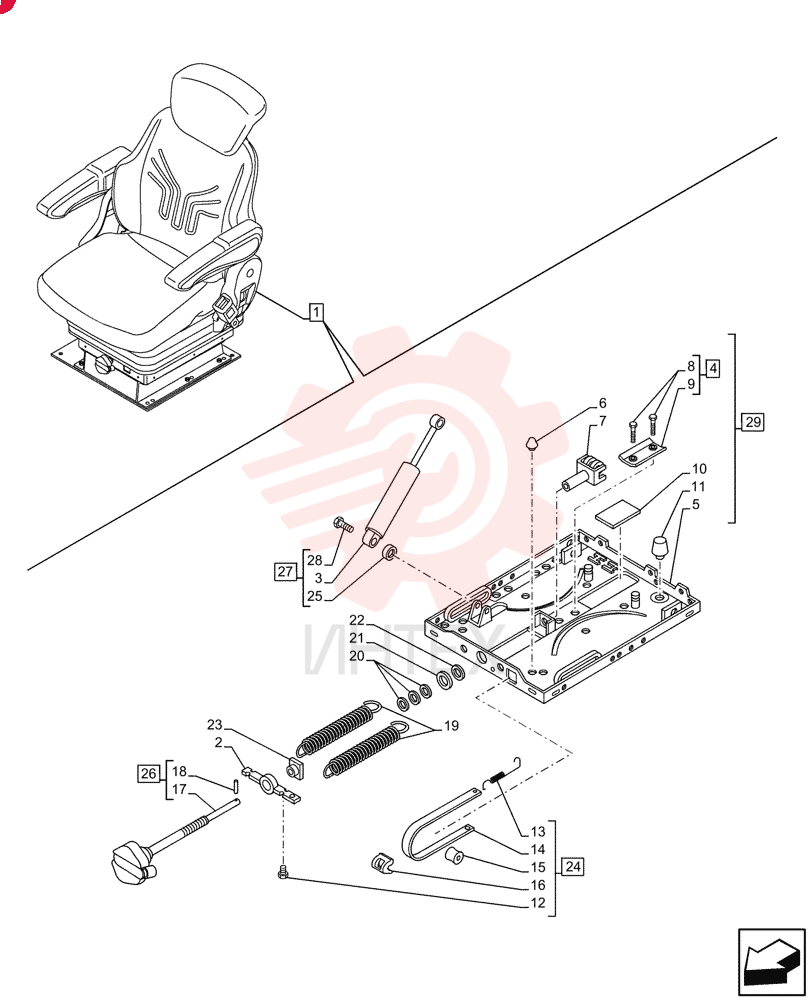

SEAT 84177709 (3)

SEAT 84177709 (3)

SEAT 84177709 (3)

1 84177709

  • 84177709 - SEAT

2 47931584

  • 47931584 - DRIVER SEAT

3 9959577

  • 9959577 - BRACKET

4 NSS

  • NSS - NOT SOLD SEPARAT

5 9960767

  • 9960767 - CLIP

6 NSS

  • NSS - NOT SOLD SEPARAT

7 85817440

  • 85817440 - RUBBER BUMPER

8 82035043

  • 82035043 - FORK

9 9959585

  • 9959585 - RIVET
  • M4 x 10mm

10 NSS

  • NSS - NOT SOLD SEPARAT

11 82035032

  • 82035032 - PLATE

12 85817441

  • 85817441 - RUBBER BUMPER

13 9958789

  • 9958789 - PLUG

14 9958790

  • 9958790 - SPRING

15 NSS

  • NSS - NOT SOLD SEPARAT

16 9958785

  • 9958785 - ROLLER

17 9958786

  • 9958786 - GUIDE

18 NSS

  • NSS - NOT SOLD SEPARAT

19 82035062

  • 82035062 - PIN
  • 3mm OD x 16mm L
  • Slotted

20 85817434

  • 85817434 - SPRING

21 9958800

  • 9958800 - SET OF WASHERS

22 446940

  • 446940 - RUBBER WASHER

23 85817435

  • 85817435 - BUSHING

24 3225317R1

  • 3225317R1 - NUT
  • Weld
  • M12

25 85817443

  • 85817443 - INDICATOR

26 9972178

  • 9972178 - CIRCLIP
  • M5

27 85817451

  • 85817451 - ADJUSTMENT SCREW

28 85817431

  • 85817431 - SHOCK ABSORBER

29 9959588

  • 9959588 - BOLT
  • M8 x 22mm

30 85817436

  • 85817436 - PLATE
