New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

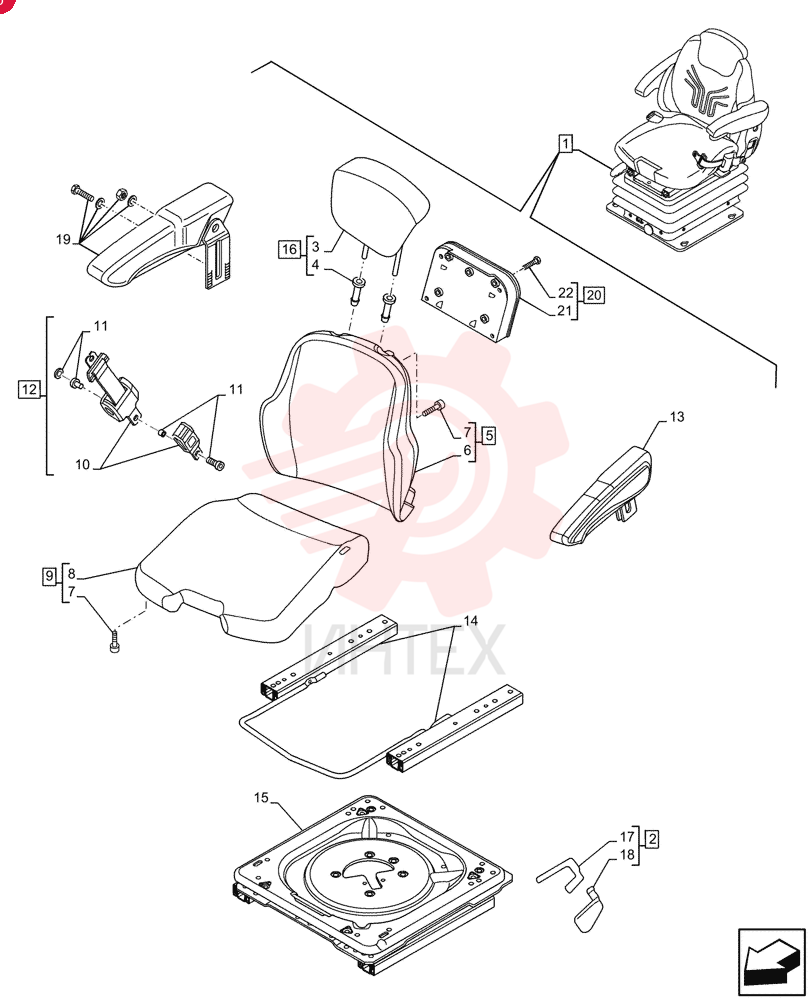

SEAT 84177698 (3)

SEAT 84177698 (3)

SEAT 84177698 (3)

1 84177698

  • 84177698 - SEAT

2 47931576

  • 47931576 - DRIVER SEAT

3 82034960

  • 82034960 - LEVER

4 NSS

  • NSS - NOT SOLD SEPARAT

5 84191112

  • 84191112 - GUIDE

6 84332482

  • 84332482 - BACKREST

7 NSS

  • NSS - NOT SOLD SEPARAT

8 84191200

  • 84191200 - SET OF PARTS

9 NSS

  • NSS - NOT SOLD SEPARAT

10 84332483

  • 84332483 - SEAT CUSHION

11 NSS

  • NSS - NOT SOLD SEPARAT

12 84332480

  • 84332480 - KIT

13 87364220

  • 87364220 - SAFETY BELT
  • 48.00 mm W

14 71491406

  • 71491406 - ARMREST

15 85817484

  • 85817484 - KIT

16 84332479

  • 84332479 - SUPPORT

17 84332484

  • 84332484 - BACKREST

18 NSS

  • NSS - NOT SOLD SEPARAT

19 82034950

  • 82034950 - HANDLE

20 71491408

  • 71491408 - ARMREST

21 71491415

  • 71491415 - UTILITY HOLDER

22 NSS

  • NSS - NOT SOLD SEPARAT

23 84247569

  • 84247569 - REPAIR KIT
