New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

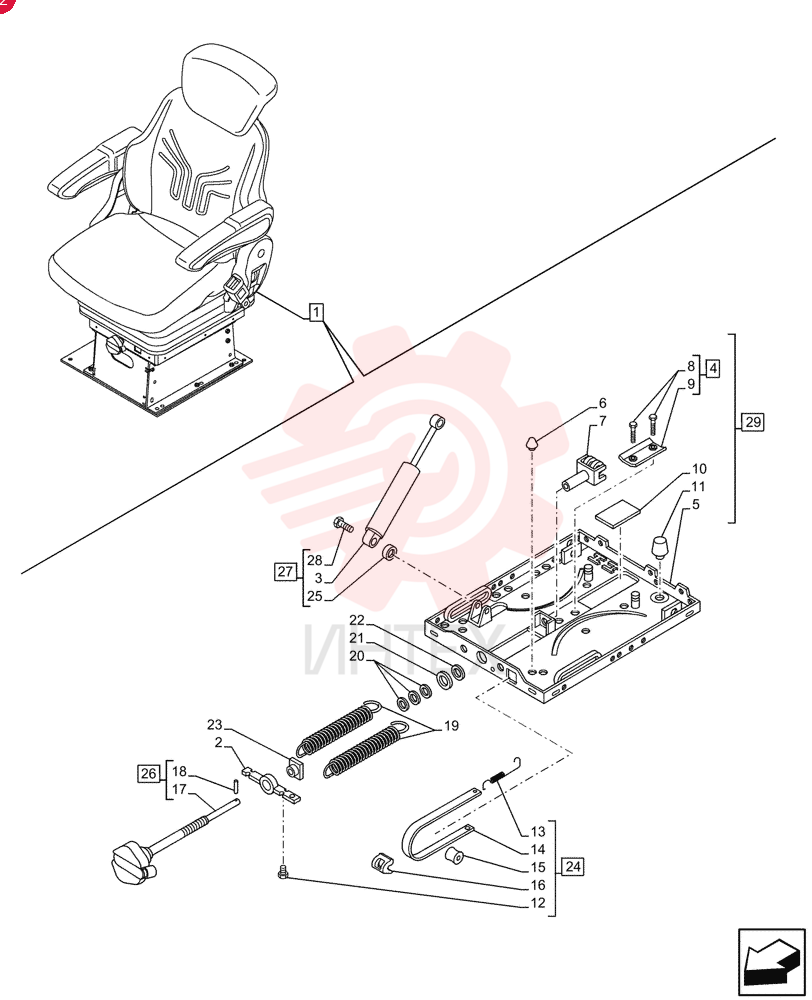

SEAT 84177703 (3)

SEAT 84177703 (3)

SEAT 84177703 (3)

1 84177703

  • 84177703 - SEAT

2 9959577

  • 9959577 - BRACKET

3 NSS

  • NSS - NOT SOLD SEPARAT

4 9960767

  • 9960767 - CLIP

5 NSS

  • NSS - NOT SOLD SEPARAT

6 85817440

  • 85817440 - RUBBER BUMPER

7 82035043

  • 82035043 - FORK

8 9959585

  • 9959585 - RIVET
  • M4 x 10mm

9 NSS

  • NSS - NOT SOLD SEPARAT

10 82035032

  • 82035032 - PLATE

11 85817441

  • 85817441 - RUBBER BUMPER

12 9958789

  • 9958789 - PLUG

13 9958790

  • 9958790 - SPRING

14 NSS

  • NSS - NOT SOLD SEPARAT

15 9958785

  • 9958785 - ROLLER

16 9958786

  • 9958786 - GUIDE

17 NSS

  • NSS - NOT SOLD SEPARAT

18 82035062

  • 82035062 - PIN
  • 3mm OD x 16mm L
  • Slotted

19 85817434

  • 85817434 - SPRING

20 9958800

  • 9958800 - SET OF WASHERS

21 446940

  • 446940 - RUBBER WASHER

22 85817435

  • 85817435 - BUSHING

23 3225317R1

  • 3225317R1 - NUT
  • Weld
  • M12

24 85817443

  • 85817443 - INDICATOR

25 9972178

  • 9972178 - CIRCLIP
  • M5

26 85817451

  • 85817451 - ADJUSTMENT SCREW

27 85817431

  • 85817431 - SHOCK ABSORBER

28 9959588

  • 9959588 - BOLT
  • M8 x 22mm

29 85817436

  • 85817436 - PLATE
