New Holland Construction
/
(C232) - COMPACT TRACK LOADER - TIER 4B (3/15-)
/

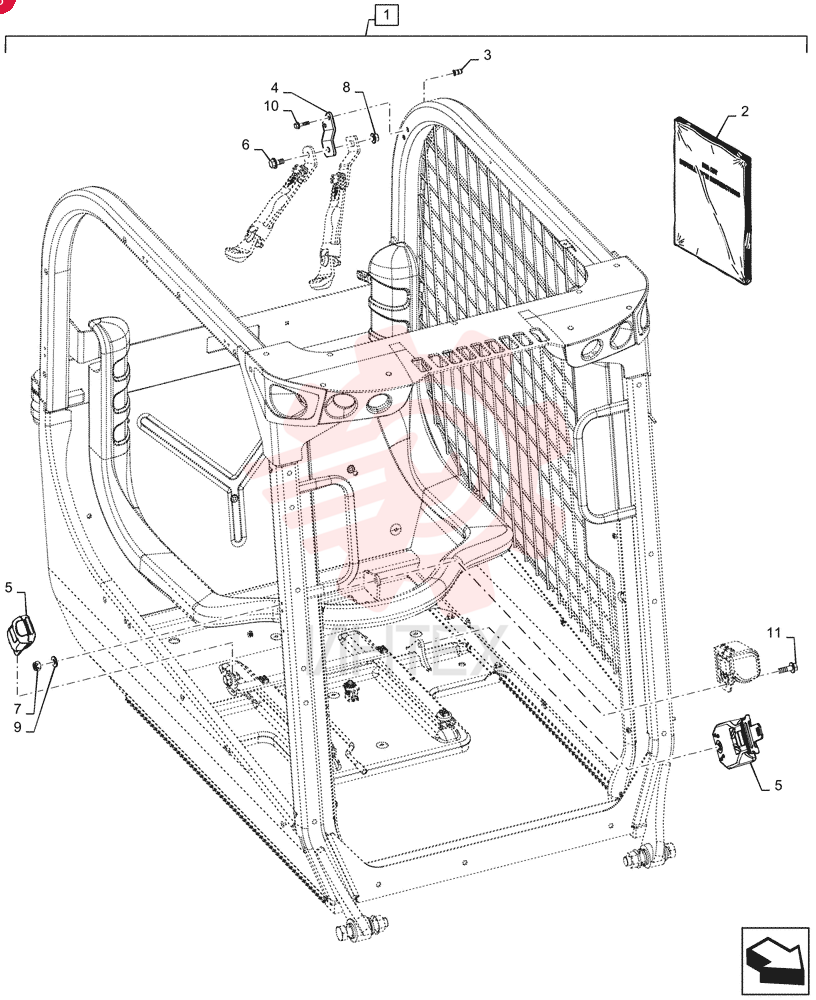

KIT 47462566

KIT 47462566

KIT 47462566

1 47462566

  • 47462566 - KIT
  • 3 Point Seat Belt
  • Incl 2 - 11

2 47462568

  • 47462568 - INSTRUCTION
  • Sheet

3 84272827

  • 84272827 - RIVET
  • Flat Flg Head
  • 12.7mm OD x 17.4mm L

4 84291791

  • 84291791 - BRACKET
  • 3 Point Retractable
  • Seat Belt

5 47444753

  • 47444753 - SEAT BELT
  • 3 Point

6 86050286

  • 86050286 - FLANGE BOLT
  • M10 x 20mm
  • Cl 8.8

7 86512554

  • 86512554 - NUT
  • M10 x 1.5
  • Cl 10

8 86619802

  • 86619802 - FLANGE NUT
  • M10 x 1.5
  • Cl 8

9 87655046

  • 87655046 - SPECIAL WASHER
  • 10.65mm ID x 23mm OD x 2.2mm Thk

10 9804257

  • 9804257 - FLANGE BOLT
  • Hex
  • M6 x 1.0 x 25mm
  • Cl 8.8
  • Full Thd

11 9804262

  • 9804262 - BOLT
  • M10 x 39.2mm
  • Cl 8.8
