New Holland Construction
/
(C232) - COMPACT TRACK LOADER - TIER 4B (3/15-)
/

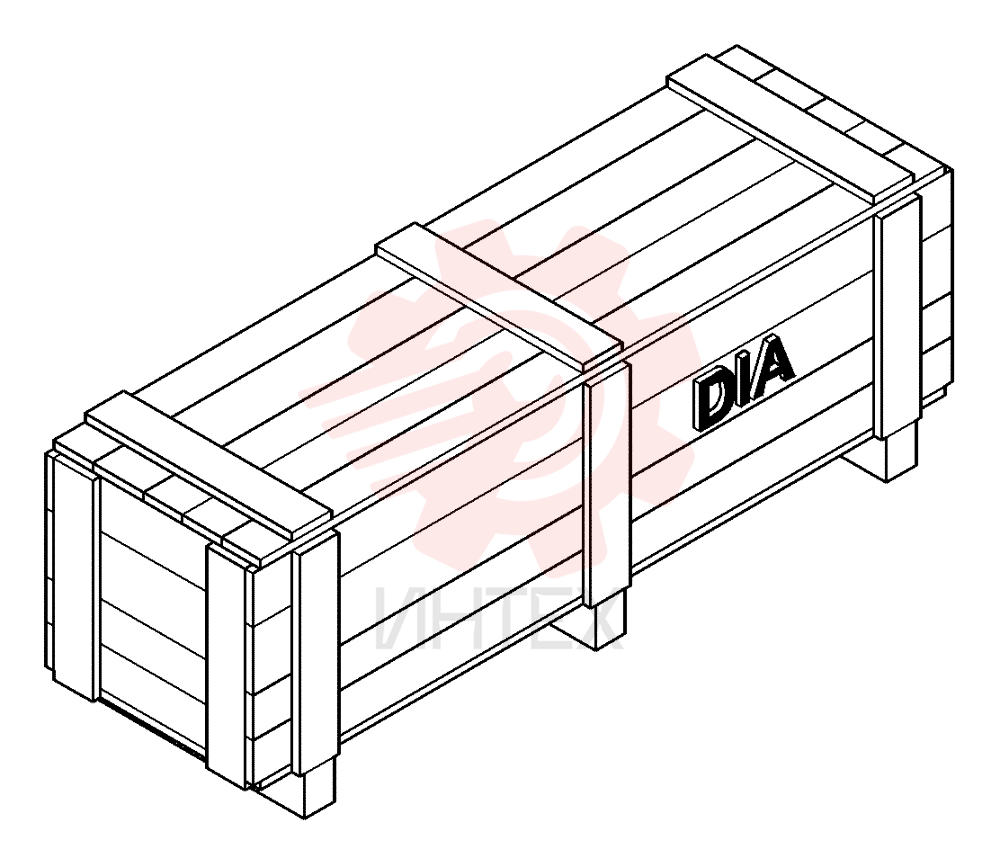

SERVICE KIT 47378713

SERVICE KIT 47378713

SERVICE KIT 47378713

1 47378713

  • 47378713 - SERVICE KIT
  • DIA Kit
  • Road Lights
  • LG
  • NH
  • Incl 2 - 40

2 47378726

  • 47378726 - INSTRUCTION
  • Sheet

3 9706748

  • 9706748 - CLAMP
  • 15.9mm
  • Coat
  • 8.7mm Bolt Hole
  • P Type

4 9804258

  • 9804258 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

5 86604657

  • 86604657 - INDICATOR
  • TURN SIGN
  • 3 Pins

6 87634133

  • 87634133 - SWITCH
  • Hazard Lights

7 84263153

  • 84263153 - SWITCH
  • Rocker
  • Loader Lockout

8 84306586

  • 84306586 - BRACKET
  • SUPPORTING
  • RH
  • Light

9 84306584

  • 84306584 - BRACKET
  • SUPPORTING
  • LH
  • Light

10 87572859

  • 87572859 - LAMP
  • RH
  • Combination

11 87572860

  • 87572860 - LAMP
  • LH
  • Combination

12 280476

  • 280476 - SELF-TAP SCREW
  • HWH
  • 3/8"-16 x 1"

13 9821783

  • 9821783 - FLASHER UNIT
  • Assy

14 84262452

  • 84262452 - WIRE HARNESS
  • FE Boom
  • VT

15 84221257

  • 84221257 - CLAMP
  • 14.2mm
  • Coat
  • 10.3mm Bolt Hole
  • J Type

16 86512420

  • 86512420 - CARRIAGE BOLT
  • Rnd Head
  • M8 x 1.25 x 20mm
  • Full Thd
  • Cl 8.8

17 9804277

  • 9804277 - FLANGE NUT
  • Hex
  • M8 x 1.25
  • Cl 8

18 84420530

  • 84420530 - WIRE HARNESS
  • Boom
  • LH
  • VT

19 84383044

  • 84383044 - WIRE HARNESS
  • Rear
  • Road Jumper

20 86511042

  • 86511042 - SCREW
  • Pan Head
  • M4 x 0.7 x 16mm
  • Cl 4.8

21 82035642

  • 82035642 - HEADLAMP
  • 12V
  • 50W
  • Clear
  • Work

22 84335806

  • 84335806 - HOUSING
  • RH
  • W/O Turn Signal

23 84335748

  • 84335748 - SCREW
  • FLAT
  • M8 x 19.809mm

24 84335810

  • 84335810 - HOUSING
  • LH
  • W/O Turn Signal

25 84333233

  • 84333233 - BRACKET
  • L Bracket
  • Two Hole

26 87682398

  • 87682398 - SCREW
  • Torx
  • Round HD
  • M6 x 16mm
  • Cl 10.9

27 84335751

  • 84335751 - NUT
  • #10-16
  • Grommet

28 84173781

  • 84173781 - SELF-TAP SCREW
  • Phillips Drive
  • Pan HD
  • #10 - 16 x 5/8"

29 86900239

  • 86900239 - SPRING NUT
  • U
  • #10 - 24

30 87307791

  • 87307791 - SCREW
  • Phillips Drive
  • Pan HD
  • #10 x 24 x 1/2"

31 84331370

  • 84331370 - WIRE HARNESS
  • Lamp
  • Jumper
  • Front

32 86589143

  • 86589143 - SPACER
  • 9.5mm ID x 15.9mm OD x 12.7mm L

33 86637977

  • 86637977 - CLAMP
  • 25.4mm
  • Coat
  • 8.7mm Bolt Hole
  • P Type

34 87029955

  • 87029955 - CLAMP
  • 22.2mm
  • Coat
  • 10.3mm Bolt Hole
  • P Type

35 86505868

  • 86505868 - SERRATED NUT
  • Hex
  • M8 x 1.25
  • Cl 8

36 87015934

  • 87015934 - BOLT
  • Hvy Hex Flange
  • M8 x 35mm
  • Cl 8.8

37 84467699

  • 84467699 - CLAMP
  • 25.4mm
  • Insulated
  • 8.7mm Bolt Hole - P Type

38 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black
  • Nylon

39 87668737

  • 87668737 - CABLE TIE
  • 203.2mm L
  • Nylon
  • Nylon
