(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-)
/

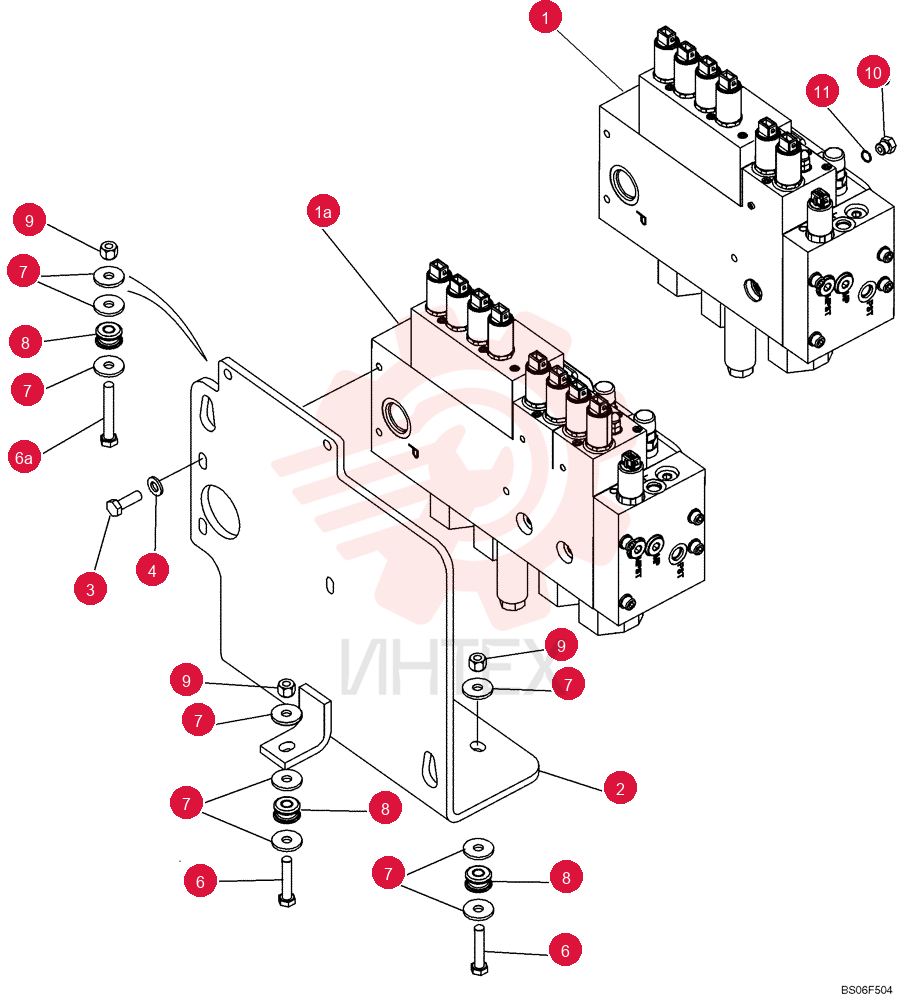

CONTROL VALVE 87658572 (5)

CONTROL VALVE 87658572 (5)

CONTROL VALVE 87658572 (5)

1 87658572

  • 87658572 - CONTROL VALVE

2 87658573

  • 87658573 - CONTROL VALVE

3 87609270

  • 87609270 - BRACKET

4 627-10030

  • 627-10030 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 10.9
  • Full Thd

5 896-11010

  • 896-11010 - WASHER
  • 11mm ID x 21mm OD x 2.5mm Thk

6 814-10050

  • 814-10050 - BOLT
  • Hex
  • M10 x 1.5 x 50mm
  • Cl 8.8

7 814-10070

  • 814-10070 - BOLT
  • Hex
  • M10 x 1.5 x 70mm
  • Cl 8.8

8 496-81028

  • 496-81028 - WASHER
  • 10.31mm ID x 31.75mm OD x 4.06mm Thk

9 296684A1

  • 296684A1 - RUBBER MOUNTING

10 832-10410

  • 832-10410 - NUT
  • M10 x 1.5
  • Cl 8

11 9841223

  • 9841223 - PLUG
  • 1-1/16" - 12 ORB

12 237-6012

  • 237-6012 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro
