(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-)
/

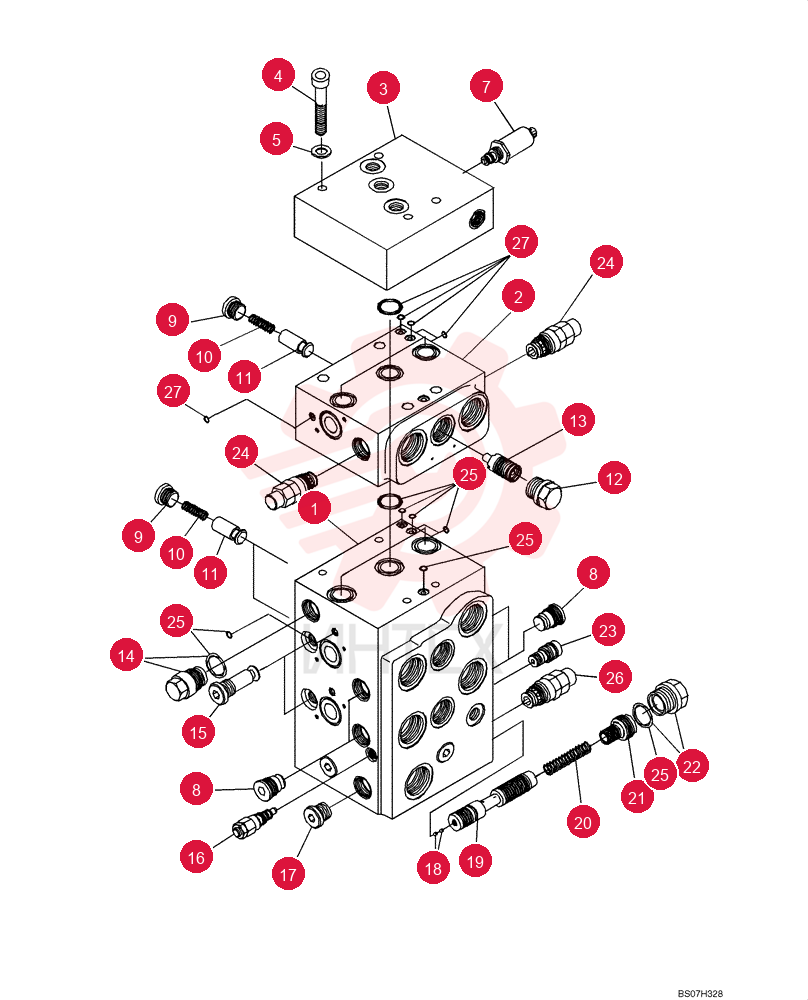

CONTROL VALVE 87658572 (8)

CONTROL VALVE 87658572 (8)

CONTROL VALVE 87658572 (8)

1 87658572

  • 87658572 - CONTROL VALVE

2 NSS

  • NSS - NOT SERVICED SEPARATELY

3 NSS

  • NSS - NOT SERVICED SEPARATELY

4 87516595

  • 87516595 - END PLATE

5 87516596

  • 87516596 - STUD
  • M8 x 120mm
  • Cl 10.9

6 892-11008

  • 892-11008 - LOCK WASHER
  • M8

7 87516636

  • 87516636 - HYDRAULIC VALVE

8 87516646

  • 87516646 - SEAL KIT

9 87516613

  • 87516613 - PLUG

10 8602923

  • 8602923 - SCREW
  • Lock
  • M18 x 1.5

11 87567795

  • 87567795 - SPRING

12 87567794

  • 87567794 - CONE

13 87516612

  • 87516612 - PLUG

14 87516611

  • 87516611 - SPOOL

15 87567789

  • 87567789 - VALVE

16 8604567

  • 8604567 - VALVE
  • CHECK

17 87567788

  • 87567788 - PRESSURE RELIEF VALVE

18 87516641

  • 87516641 - SEAL KIT

19 87516623

  • 87516623 - PLUG

20 87713199

  • 87713199 - ORIFICE

21 87713190

  • 87713190 - SPOOL

22 87567793

  • 87567793 - SPRING

23 87713194

  • 87713194 - SLEEVE

24 87516622

  • 87516622 - PLUG

25 87516616

  • 87516616 - REGULATOR

26 87516644

  • 87516644 - SEAL KIT

27 87516614

  • 87516614 - VALVE
  • PRESSURE RELI

28 87567796

  • 87567796 - SEAL KIT

29 87516638

  • 87516638 - SEAL KIT

30 87574408

  • 87574408 - VALVE
  • PRESSURE RELI

31 87567797

  • 87567797 - SEAL KIT

32 8604566

  • 8604566 - SEAL KIT
