New Holland Construction
/
(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-)
/

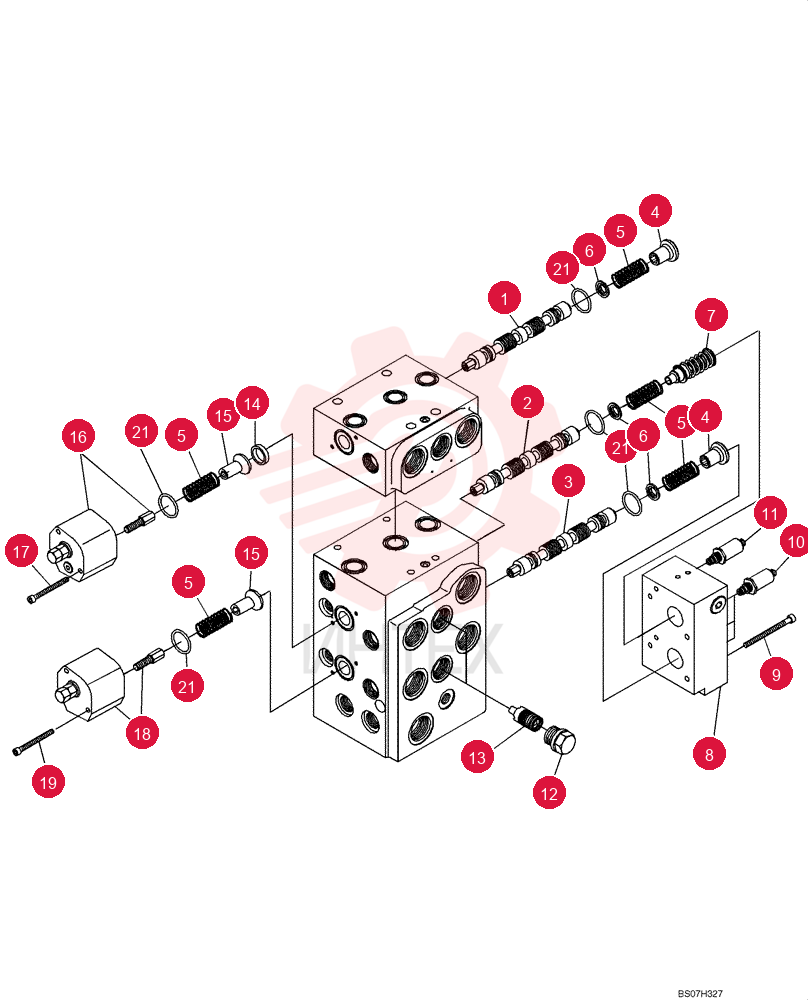

CONTROL VALVE 87658572 (7)

CONTROL VALVE 87658572 (7)

CONTROL VALVE 87658572 (7)

1 87658572

  • 87658572 - CONTROL VALVE

2 87713183

  • 87713183 - SPOOL

3 87713176

  • 87713176 - SPOOL

4 87713172

  • 87713172 - SPOOL

5 87516620

  • 87516620 - RETAINER

6 87516617

  • 87516617 - SPRING

7 8604582

  • 8604582 - RETAINER

8 87311985

  • 87311985 - SPRING

9 87516632

  • 87516632 - COVER

10 87518268

  • 87518268 - SCREW
  • M5 x 80mm
  • Gr 8.8

11 87516634

  • 87516634 - PRESSURE RELIEF VALVE

12 87516645

  • 87516645 - FILTER

13 87516646

  • 87516646 - SEAL KIT

14 87516635

  • 87516635 - CARTRIDGE

15 87516645

  • 87516645 - FILTER

16 87516646

  • 87516646 - SEAL KIT

17 87516612

  • 87516612 - PLUG

18 87516611

  • 87516611 - SPOOL

19 87311986

  • 87311986 - RING

20 87311984

  • 87311984 - RETAINER

21 87516587

  • 87516587 - COVER

22 864-5060

  • 864-5060 - HEX SOC SCREW
  • M5 x 60mm
  • Cl 8.8

23 87516585

  • 87516585 - COVER

24 864-5055

  • 864-5055 - HEX SOC SCREW
  • M5 x 55mm
  • Cl 8.8

25 87516638

  • 87516638 - SEAL KIT
