New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

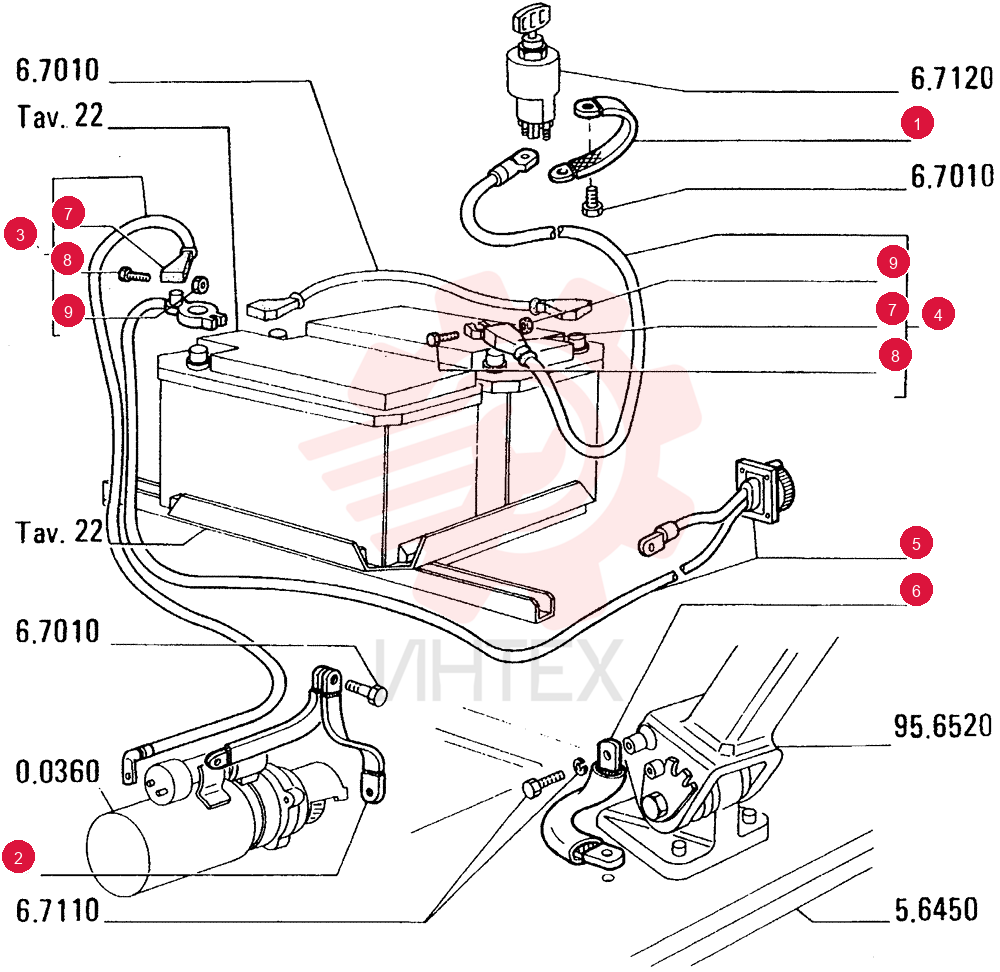

ELECTRIC CABLE 76013989

ELECTRIC CABLE 76013989

ELECTRIC CABLE 76013989

1 76013989

  • 76013989 - ELECTRIC CABLE

2 76013990

  • 76013990 - ELECTRIC CABLE

3 79099945

  • 79099945 - ELECTRIC CABLE

4 79099944

  • 79099944 - ELECTRIC CABLE

5 79099946

  • 79099946 - POWER SOCKET

6 79099947

  • 79099947 - ELECTRIC CABLE

7 4950259

  • 4950259 - PROTECTION CAP

8 11945008

  • 11945008 - SCREW

9 15896218

  • 15896218 - NUT
