New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

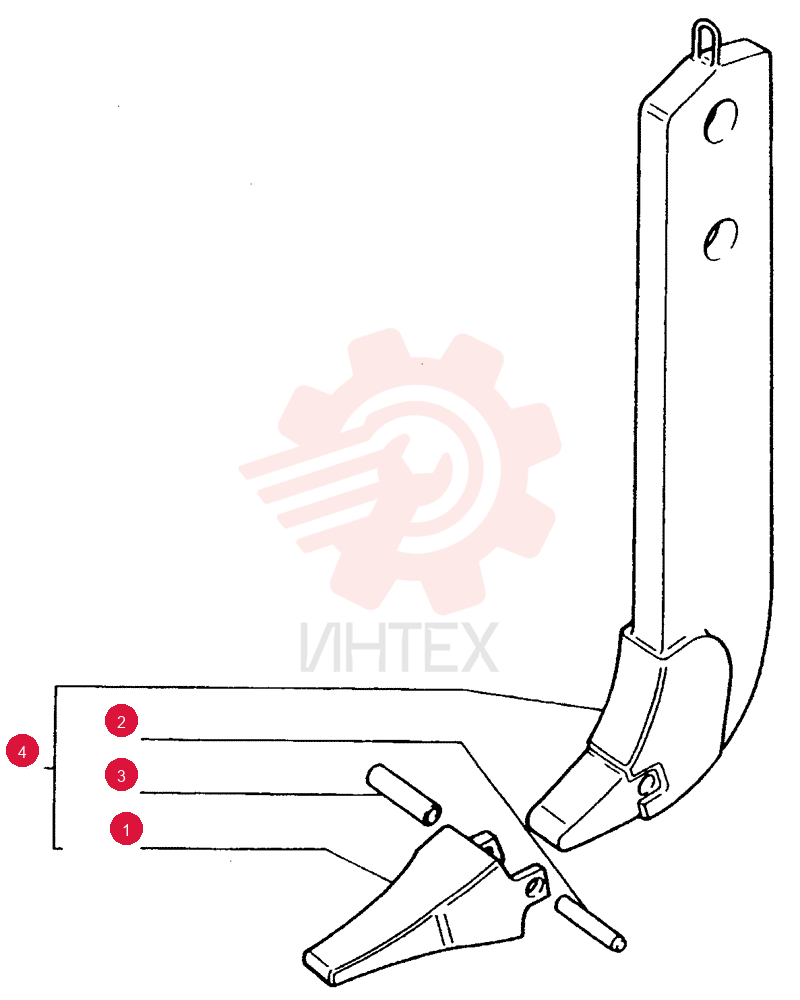

POINT 79023544

POINT 79023544

POINT 79023544

1 79023544

  • 79023544 - POINT

2 8281294

  • 8281294 - ROLL PIN

3 8281295

  • 8281295 - SLEEVE

4 79090647

  • 79090647 - SHANK
